Simple Harmonic Motion PYQIIT-JEE 2011 Paper 1 Offline

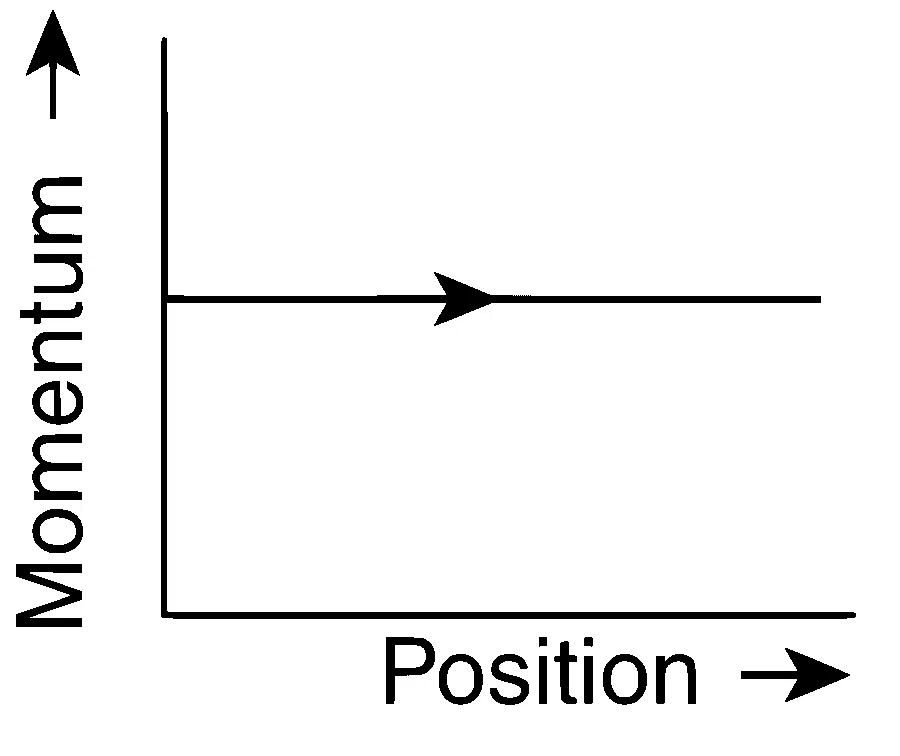

Phase space diagrams are useful tools in analyzing all kinds of dynamical problems. They are especially useful in studying the changes in motion as initial position and momentum are changed. Here we consider some simple dynamical systems in one-dimension. For such systems, phase space is a plane in which position is plotted along horizontal axis and momentum is plotted along vertical axis. The phase space diagram is x(t) vs. p(t) curve in this plane. The arrow on the curve indicates the time flow. For example, the phase space diagram for a particle moving with constant velocity is a straight line as shown int he figure. We use the sign convention in which position or momentum upwards (or to right) is positive and downwards (or to left) is negative.

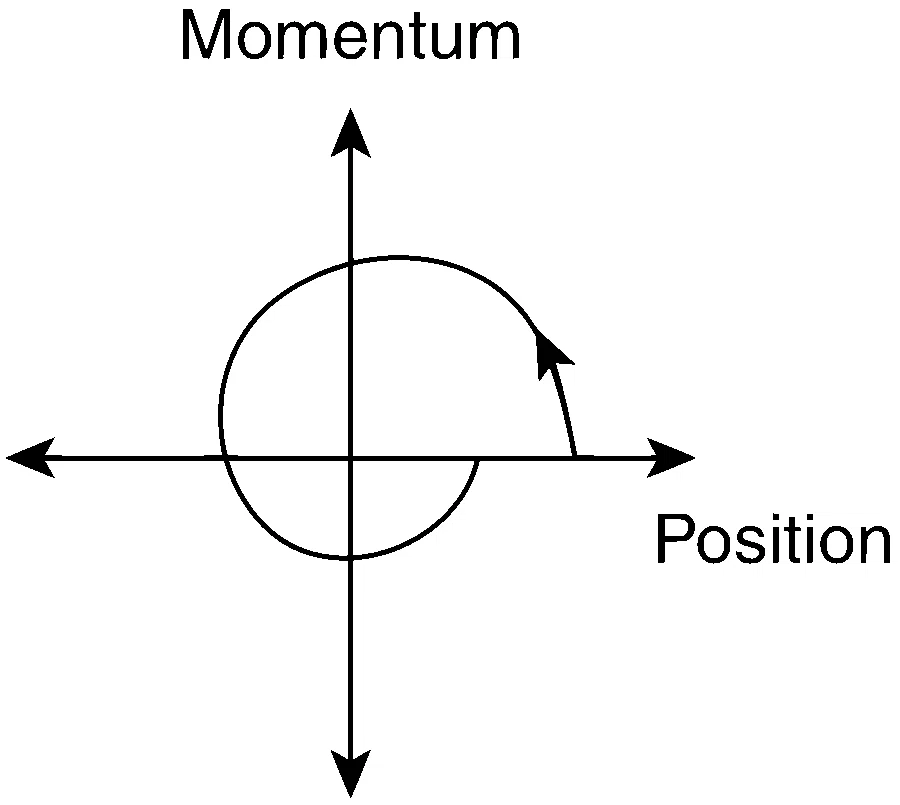

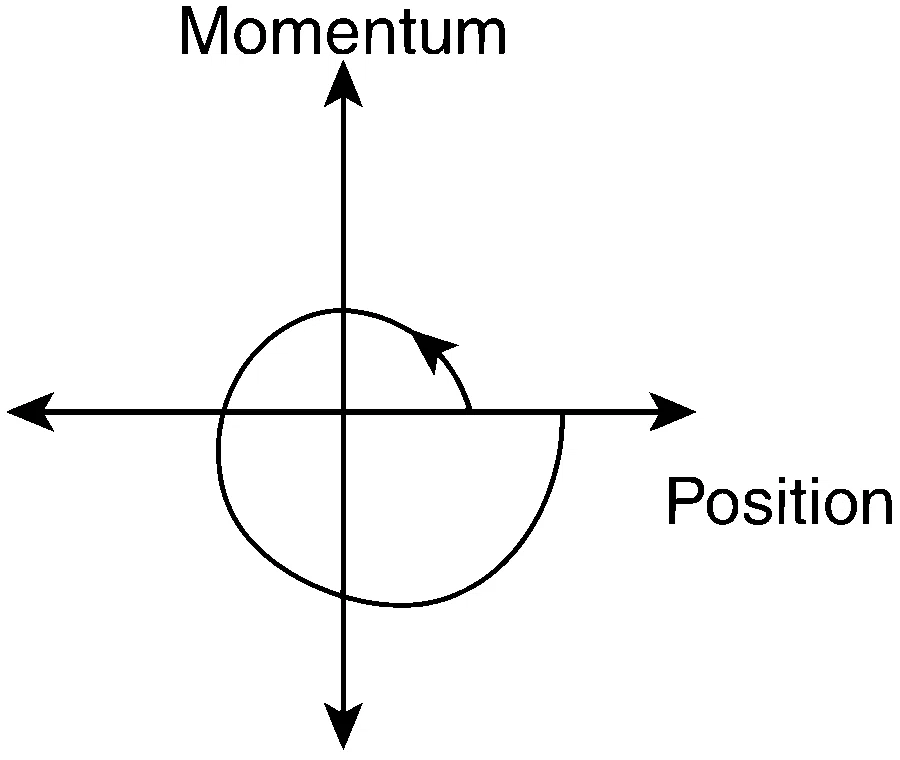

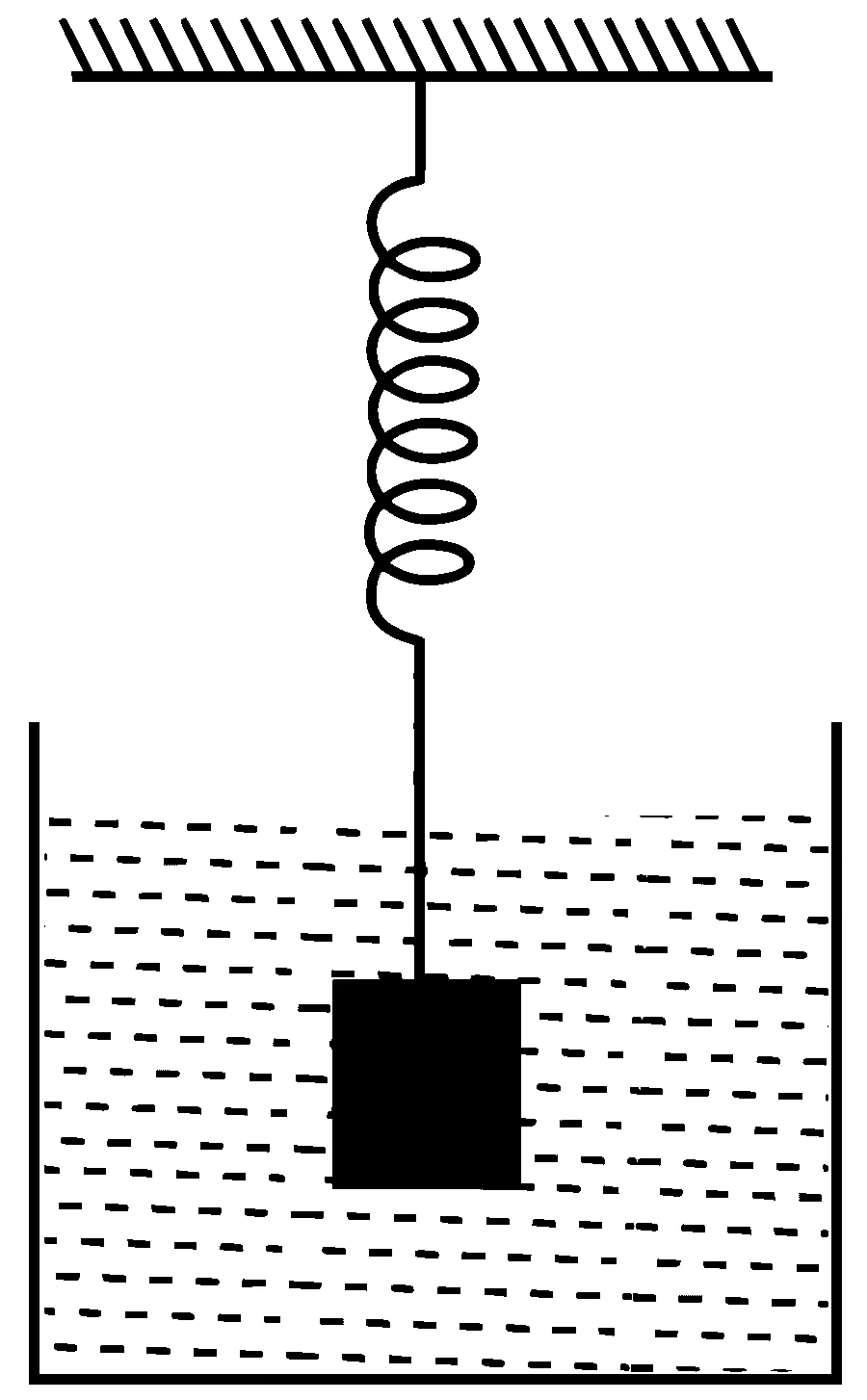

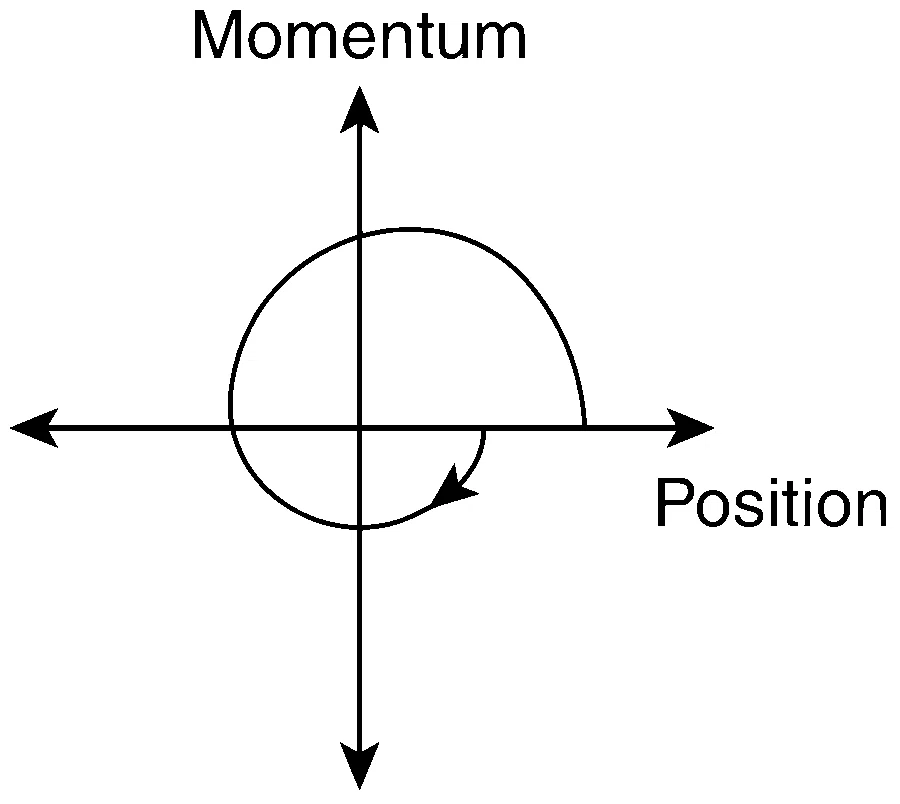

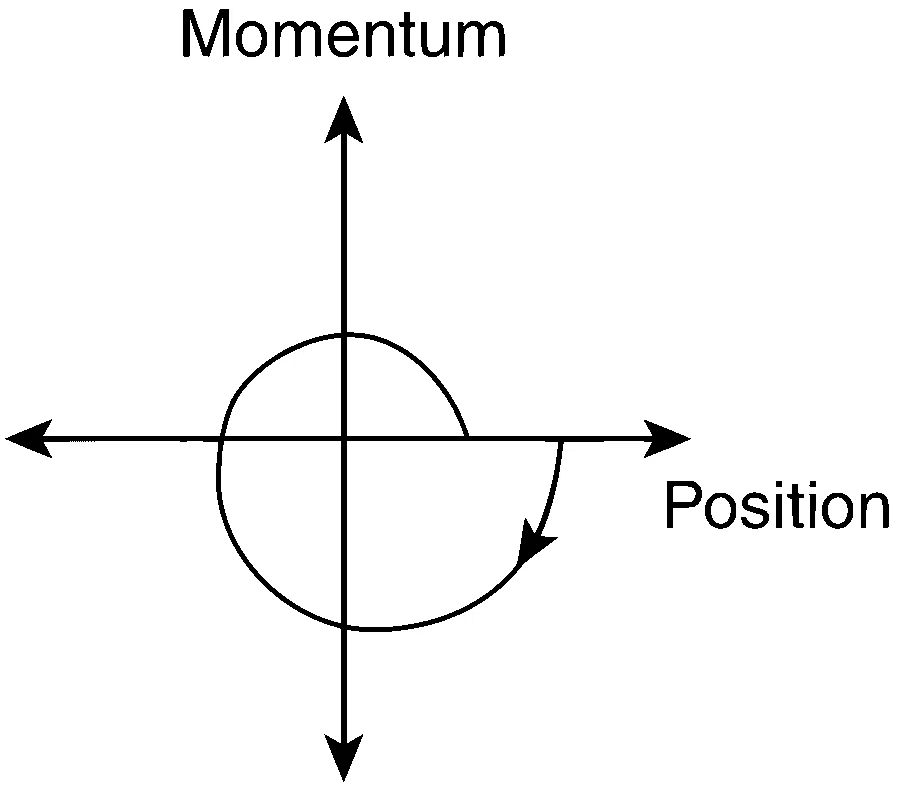

Consider the spring-mass system, with the mass submerged in water, as shown in the figure. The phase space diagram for one cycle of this system is

Solution
Correct option: B
The correct phase-space diagram is option B.
Account for buoyancy
The liquid exerts an upthrust on the mass, so the spring gets compressed and the block tends to move upward.
Include damping
Because the motion occurs in water, damping reduces the final amplitude compared with the initial amplitude. Therefore, graphs like options C and D are not suitable.
Track initial motion
With the given sign convention, the initial displacement
Follow one cycle
At the mean position,
Choose graph
This direction of motion in phase space, along with damping, matches option B.
