Simple Harmonic Motion PYQIIT-JEE 2011 Paper 1 Offline

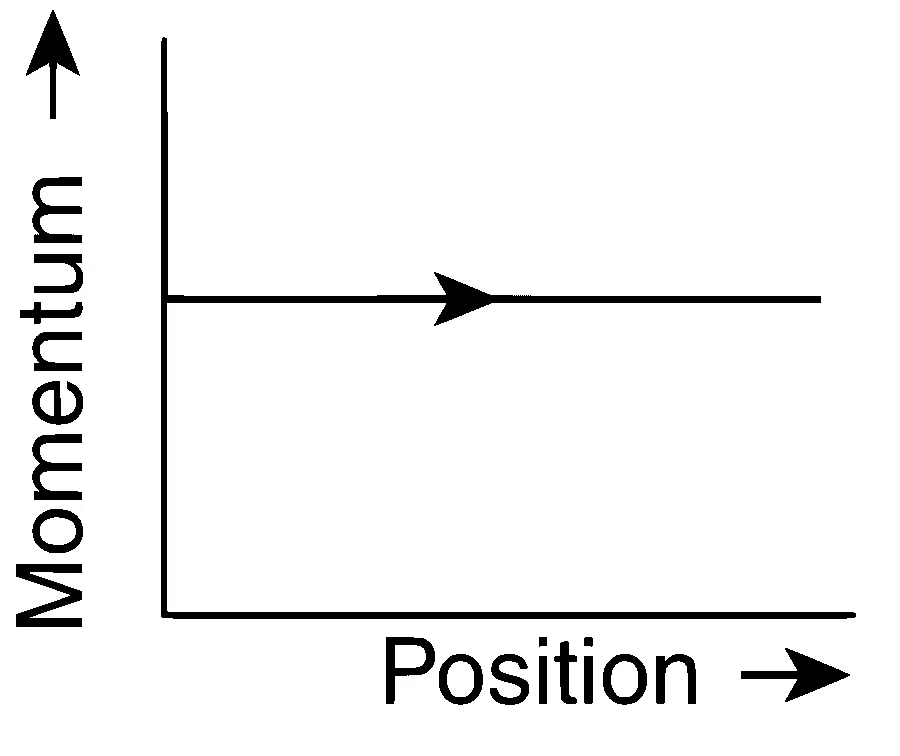

Phase space diagrams are useful tools in analyzing all kinds of dynamical problems. They are especially useful in studying the changes in motion as initial position and momentum are changed. Here we consider some simple dynamical systems in one-dimension. For such systems, phase space is a plane in which position is plotted along horizontal axis and momentum is plotted along vertical axis. The phase space diagram is x(t) vs. p(t) curve in this plane. The arrow on the curve indicates the time flow. For example, the phase space diagram for a particle moving with constant velocity is a straight line as shown int he figure. We use the sign convention in which position or momentum upwards (or to right) is positive and downwards (or to left) is negative.

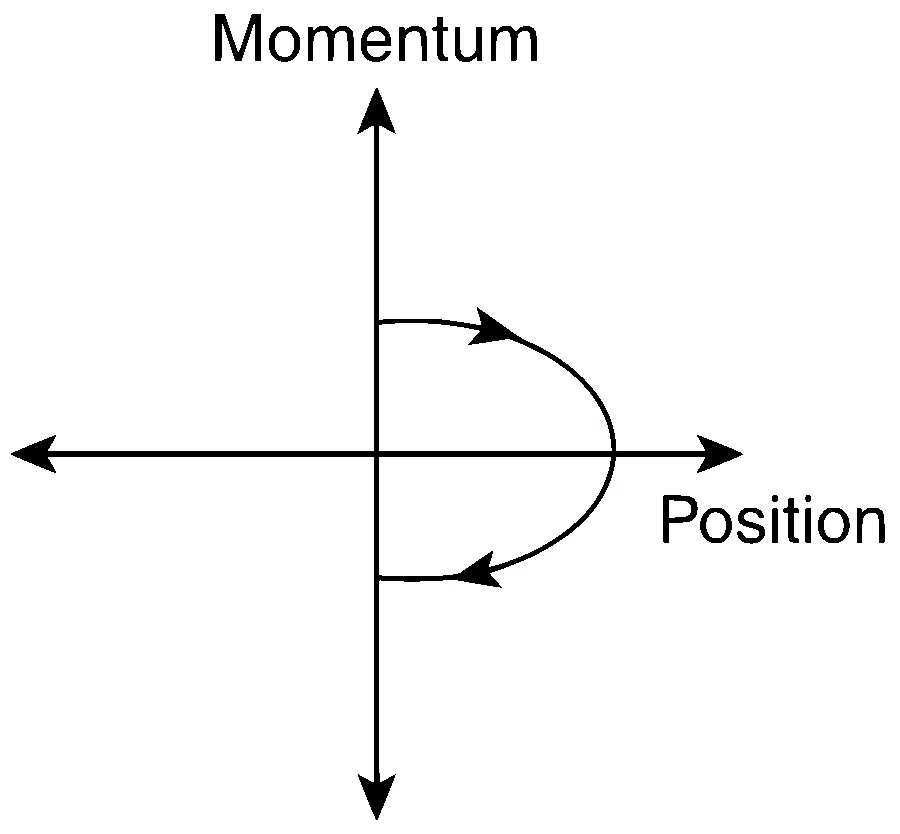

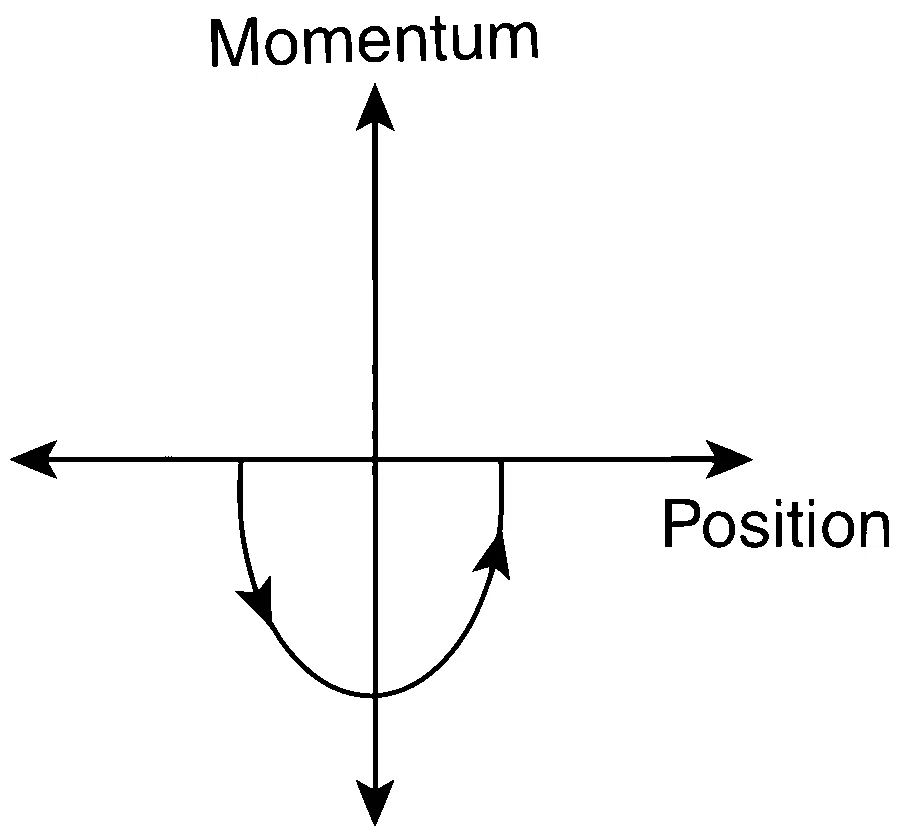

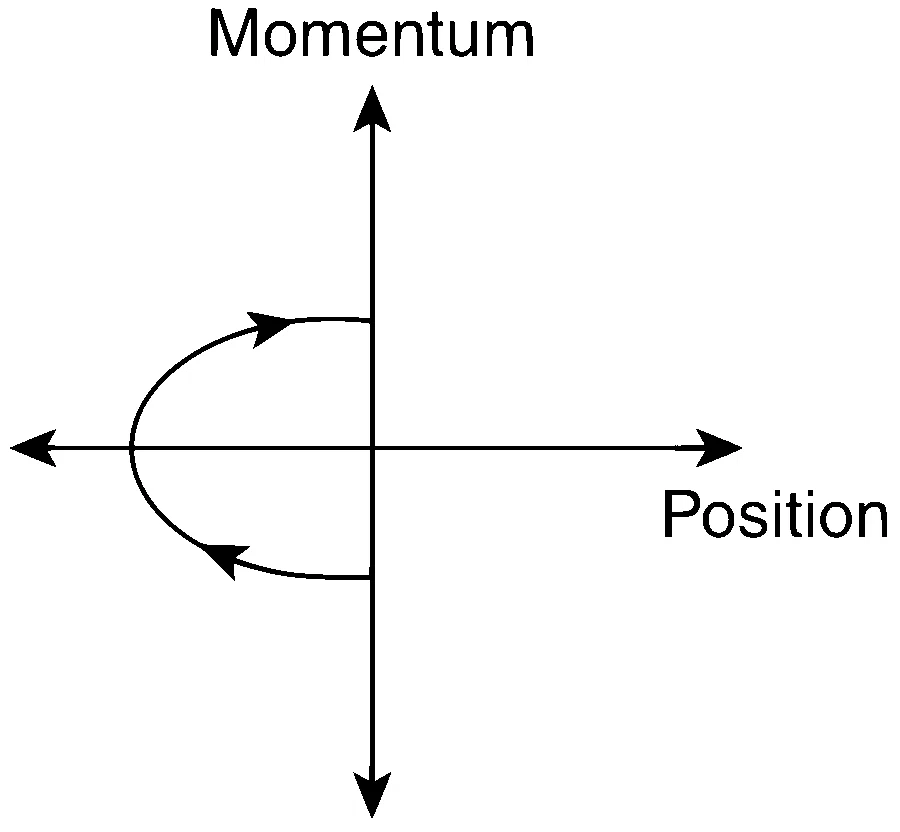

The phase space diagram for a ball thrown vertically up from ground is
Solution
Correct option: D
Answer: D
Relate Velocity and Height
For a ball thrown upward with initial speed
Write Momentum in Terms of Position
Since
Identify the Phase-Space Curve
Thus
This gives two branches, one for upward motion and one for downward motion.
Check Key Points
At
So the correct phase-space diagram is D.
