Geometrical Optics PYQIIT-JEE 2011 Paper 2 Offline

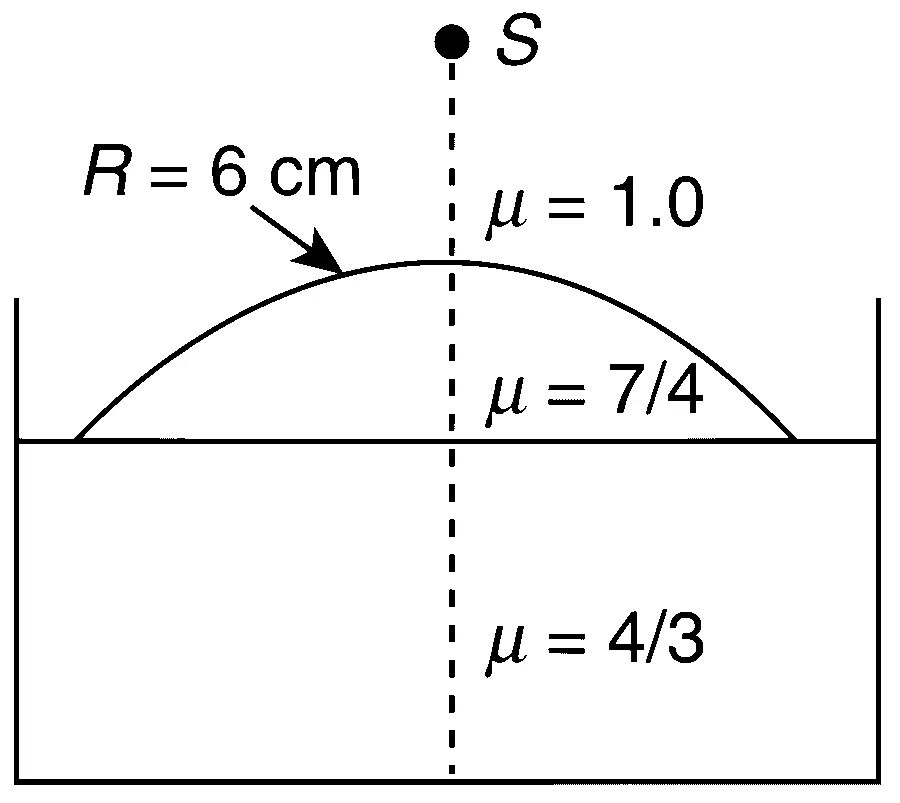

Water (with refractive index = 4/3) in a tank is 18 cm deep. Oil of refractive index 7/4 lies on water making a convex surface of radius of curvature R = 6 cm as shown. Consider oil to act a thin lens. An object S is placed 24 cm above water surface. The location of its image is at x cm above the bottom of the tank. Then x is __________.

Solution
Answer: 2
Apply refraction at the air-oil surface
Use the spherical refraction formula:
For air to oil,
Find the first image position
Solving the above equation gives
This image acts as the object for the next plane interface.
Apply refraction at the oil-water interface
For the plane oil-water surface,
Locate the final image from the bottom
Solving gives
The water depth is
