Geometrical Optics PYQIIT-JEE 2010 Paper 2 Offline

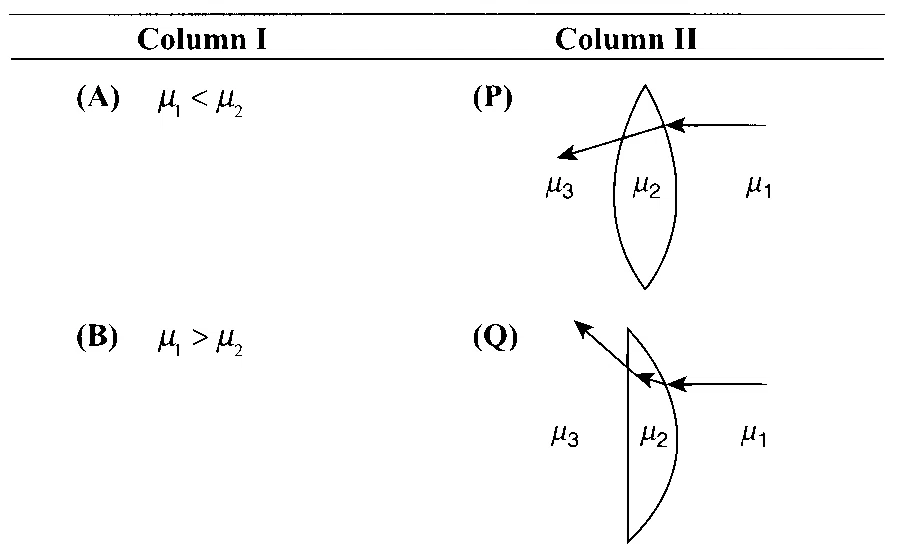

Two transparent media of refractive indices


Solution
Correct option: A
Answer: A
Use refraction at first surface
At the
Identify lens action
For rays initially parallel to the optic axis, a convex lens bends the ray towards the optic axis, while a concave lens bends it away from the optic axis.
Check second boundary
At the

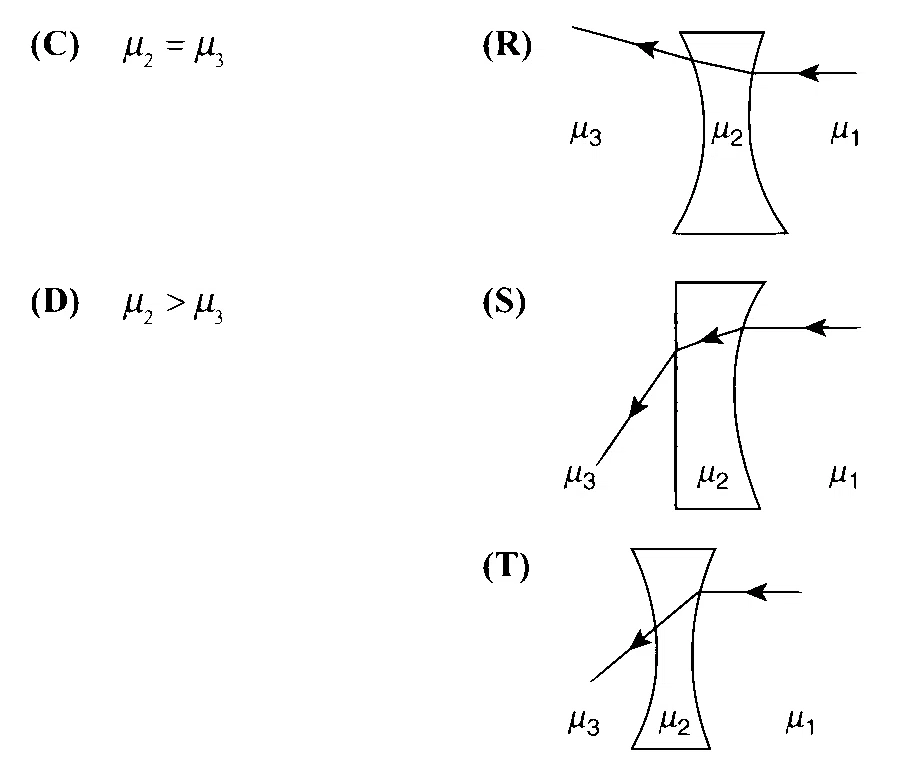

Match the diagrams
Applying these bending rules to the five ray diagrams gives:
Choose option
This matching is exactly the one listed in option A.
