Current Electricity PYQIIT-JEE 2010 Paper 1 Offline

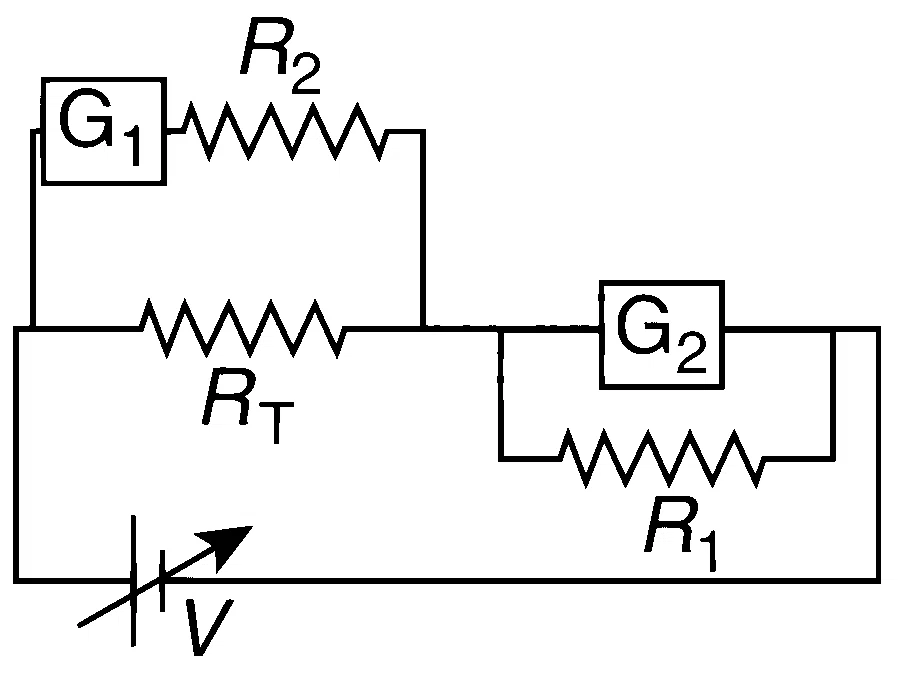

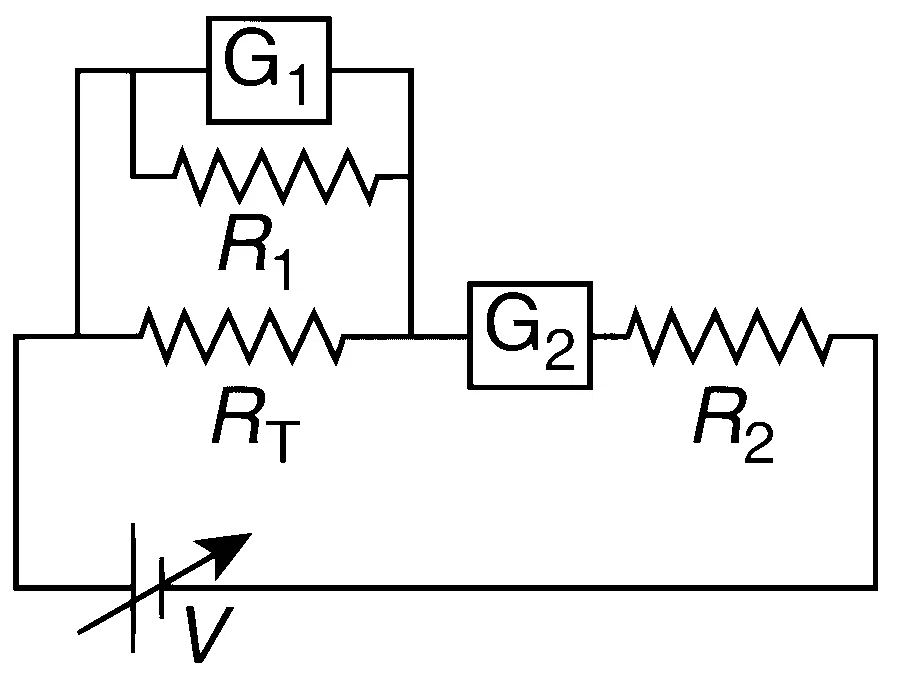

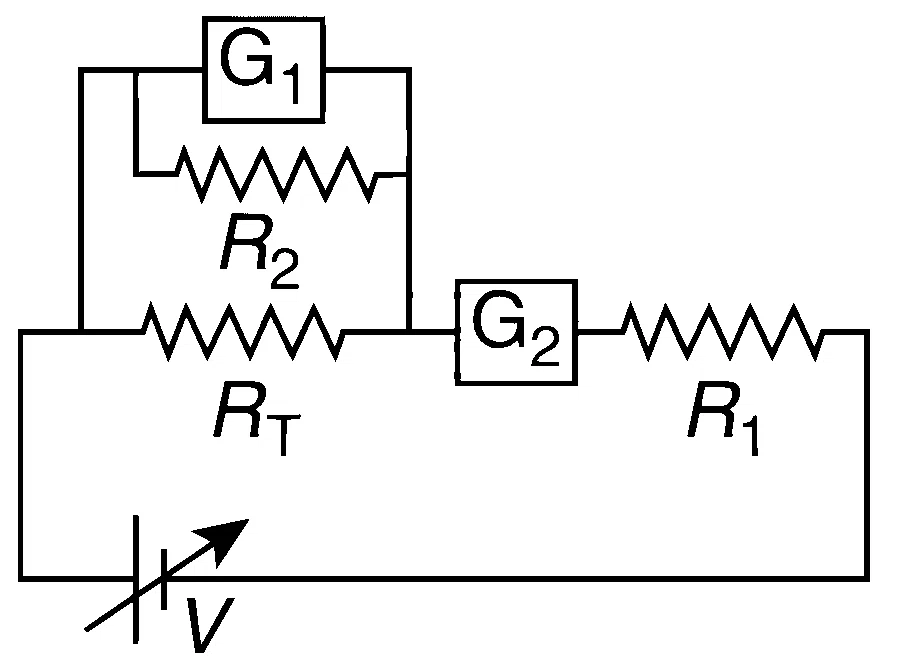

To verify Ohm's law, a student is provided with a test resitor RT, a high resistance R1, a small resistance R2, two identical galvanometers G1 and G2, and a variable voltage source V. The correct circuit to carry out the experiment is
Solution

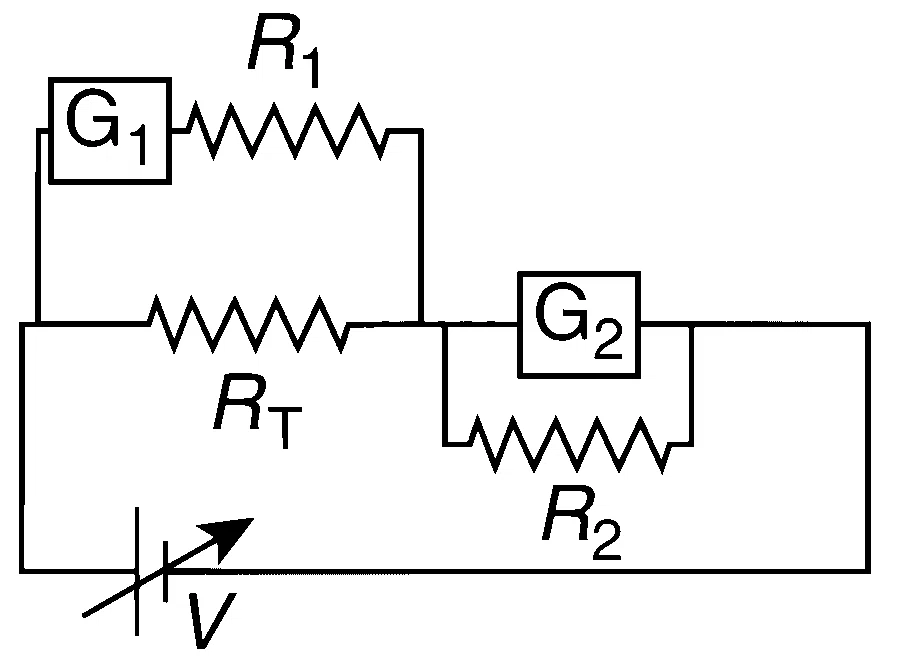

Correct option: C
The correct circuit is option C.
Quantity to Verify
To verify Ohm's law for the test resistor
Make a Voltmeter
A galvanometer connected in series with a high resistance
Place the Voltmeter
Since voltage across
Make an Ammeter
A galvanometer connected in parallel with a small resistance
Place the Ammeter
To measure the current through
