Current Electricity PYQJEE Advanced 2022 Paper 2 Online

INTEGER+3 / -12022

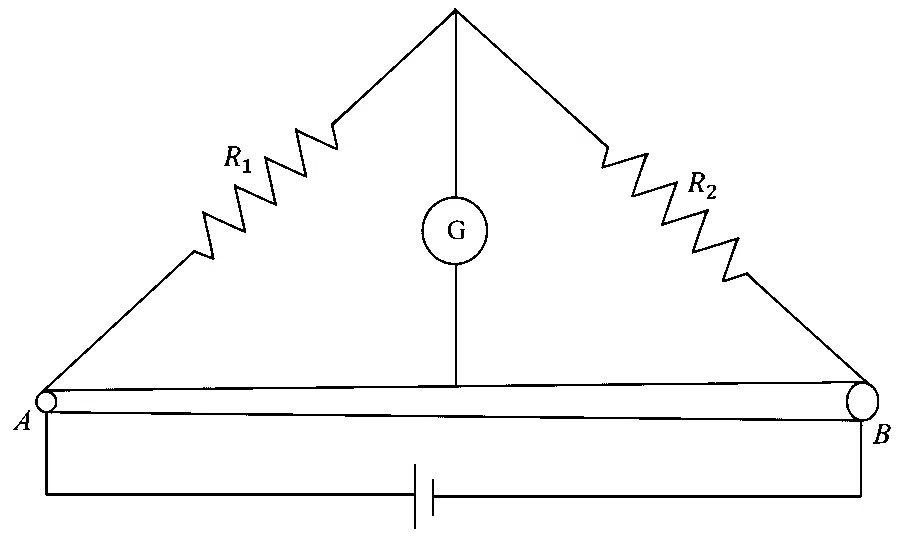

Two resistances R1=XΩ and R2=1Ω are connected to a wire AB of uniform resistivity, as shown in the figure. The radius of the wire varies linearly along its axis from 0.2 mm at A to 1 mm at B. A galvanometer (G) connected to the center of the wire, 50 cm from each end along its axis, shows zero deflection when A and B are connected to a battery. The value of X is ____________.


JEE Advanced 2022 Paper 2 Online Physics - Current Electricity Question 11 English

More Current Electricity questions to practice

Question details

Source: JEE Advanced 2022 Paper 2 Online. Subject: Physics. Chapter: Current Electricity. Marking: +3 / -1.

Current Electricity has 35 previous-year questions in JEE Advanced since 1978. It appeared in 31.1% of the 74 papers analysed. In 2026 it averaged 1 questions per paper, about 5.9% of the paper.
