Magnetism PYQIIT-JEE 2007 Paper 2 Offline
Two wires each carrying a steady current I are shown in four configurations in Column I. Some of the resulting effects are described in Column II. Match the statements in Column I with the statements in Column II and indicate your answer by darkening appropriate bubbles in the
| Column I | Column II | ||
|---|---|---|---|
| (A) | Point P is situated midway between the wires.![]() | (P) | The magnetic fields (B) at P due to the currents in the wire are in same direction. |

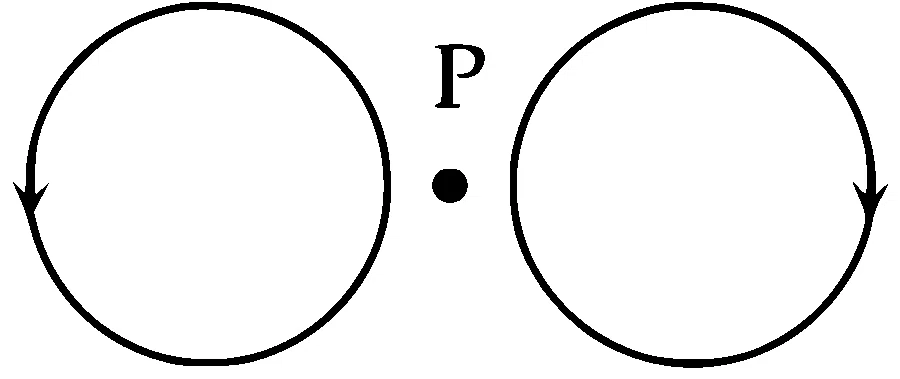

| (B) | Point P is situated at the mid-point of the line joining the centers of the circular wires, which have same radii.![]() | (Q) | The magnetic fields (B) at P due to the currents in the wires are in opposite directions. |

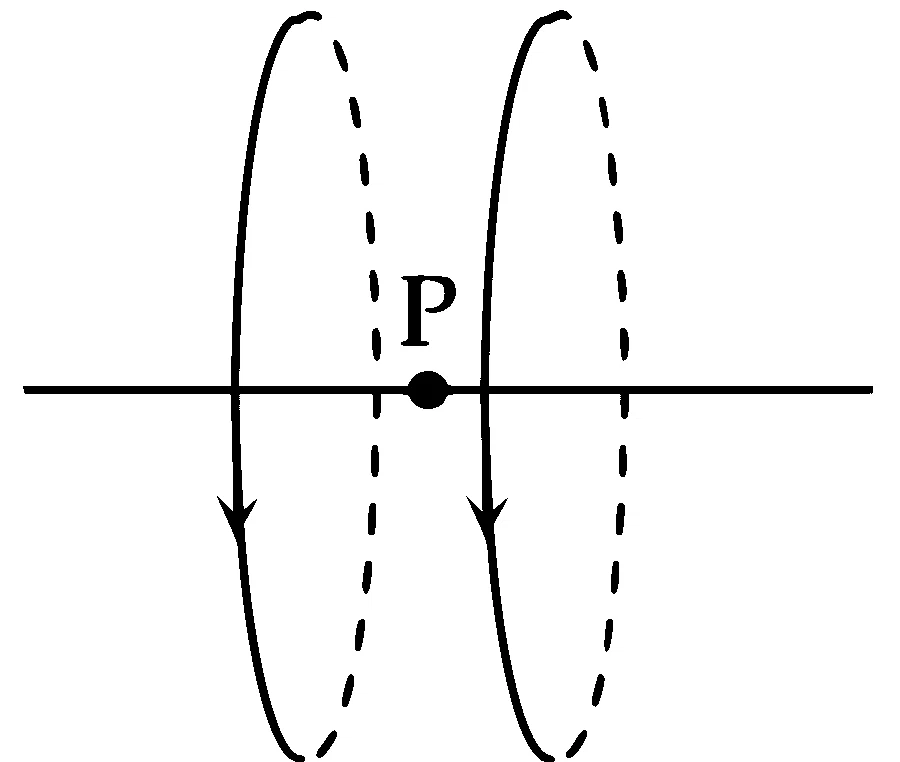

| (C) | Point P is situated at the mid-point of the line joining the centers of the circular wires, which have same radii.![]() | (R) | There is no magnetic field at P. |

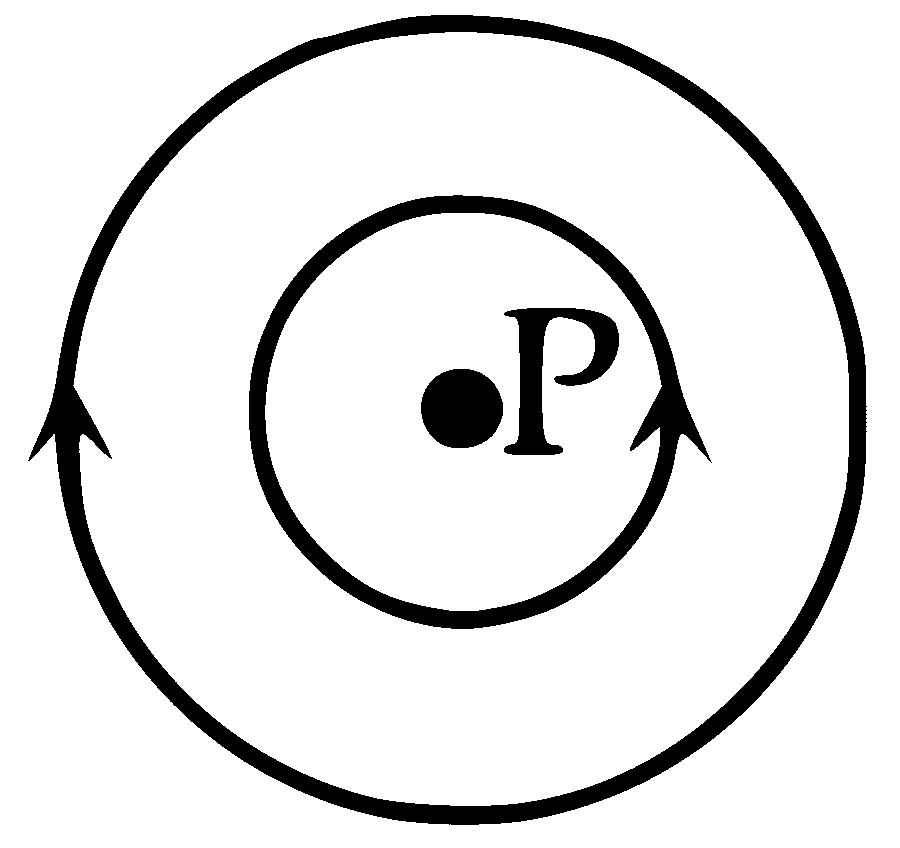

| (D) | Point P is situated at the common center of the wires.![]() | (S) | The wires repel each other. |
Solution
Correct option: B
Correct option: B
Use direction rules
Use the right-hand thumb rule to find the magnetic field at
Case A
At the midpoint
Case B
For the two equal circular wires, the magnetic fields at
Case C
This is like case A: the fields at
Case D
At the common center, the two loop currents give magnetic fields in opposite directions. Since their radii are different, the magnitudes are unequal because
Therefore, the matching is
