JEE Advanced
Magnetism PYQIIT-JEE 2006

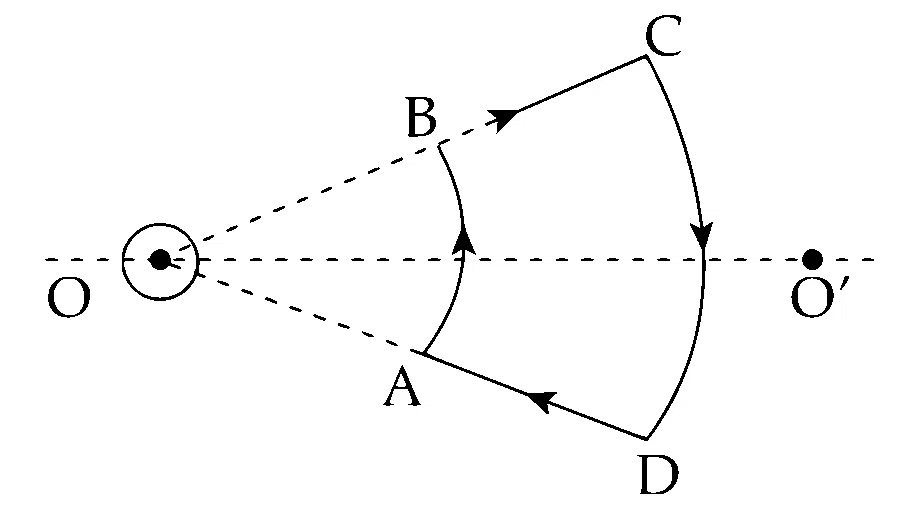

An infinite current-carrying wire passes through point O and in perpendicular to the plane containing a current-carrying loop ABCD as shown in the figure. Choose the correct option(s):

Solution
Correct option: A, C
The net force on the loop is zero, and the loop appears to rotate clockwise as seen from O.
Use the magnetic-force rule
For a current element in a magnetic field, use
Compare forces on the circular arcs
For arc AB,
For arc CD, similarly
Infer the net force
The forces on AB and CD are equal and opposite, so they cancel. Hence the net force on the loop is zero.
Check the straight radial parts
On BC and AD, the current element and magnetic field are perpendicular, so
Decide the rotation
These opposite forces form a couple. As viewed from O, this couple makes the loop rotate clockwise.
