Biotechnology Principles And Processes

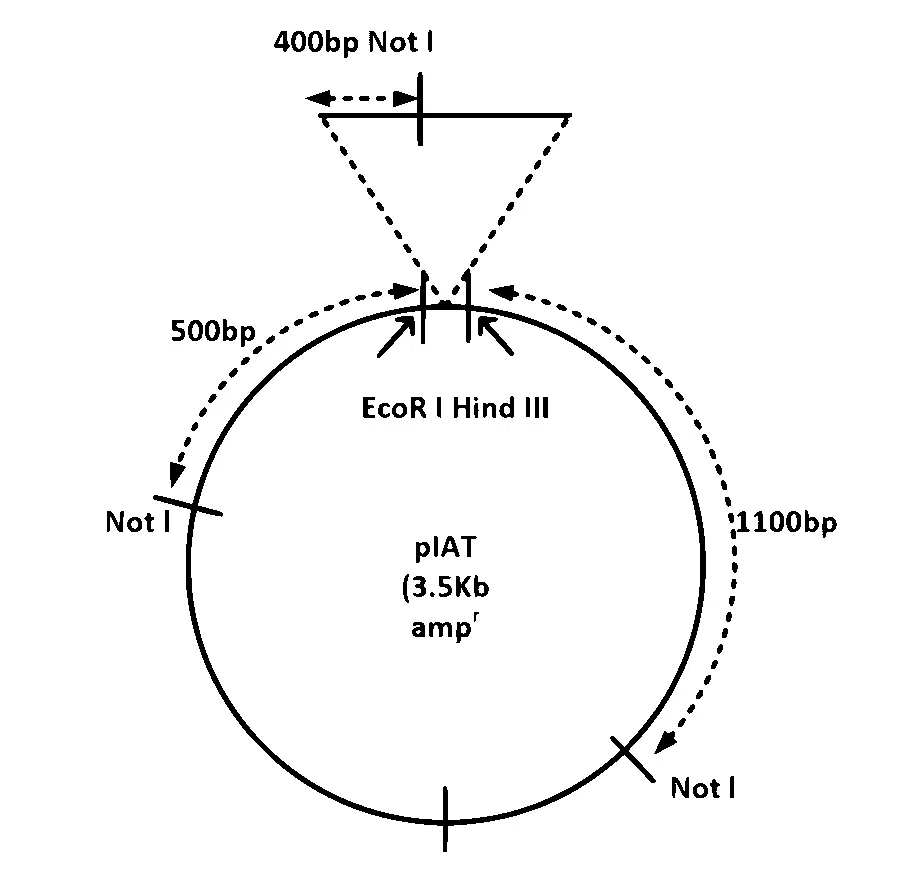

A 1000 base-pair DNA fragment was cloned between Hind III and EcoRI sites of the plasmid vector (plAT) of size 3500 base-pair. The cloned fragment had a Not I site as shown in the figure. In order to confirm the presence of the insert, the recombinant plasmid was digested completely with (a) Not I and EcoR I, and (b) Not I and Hind III.

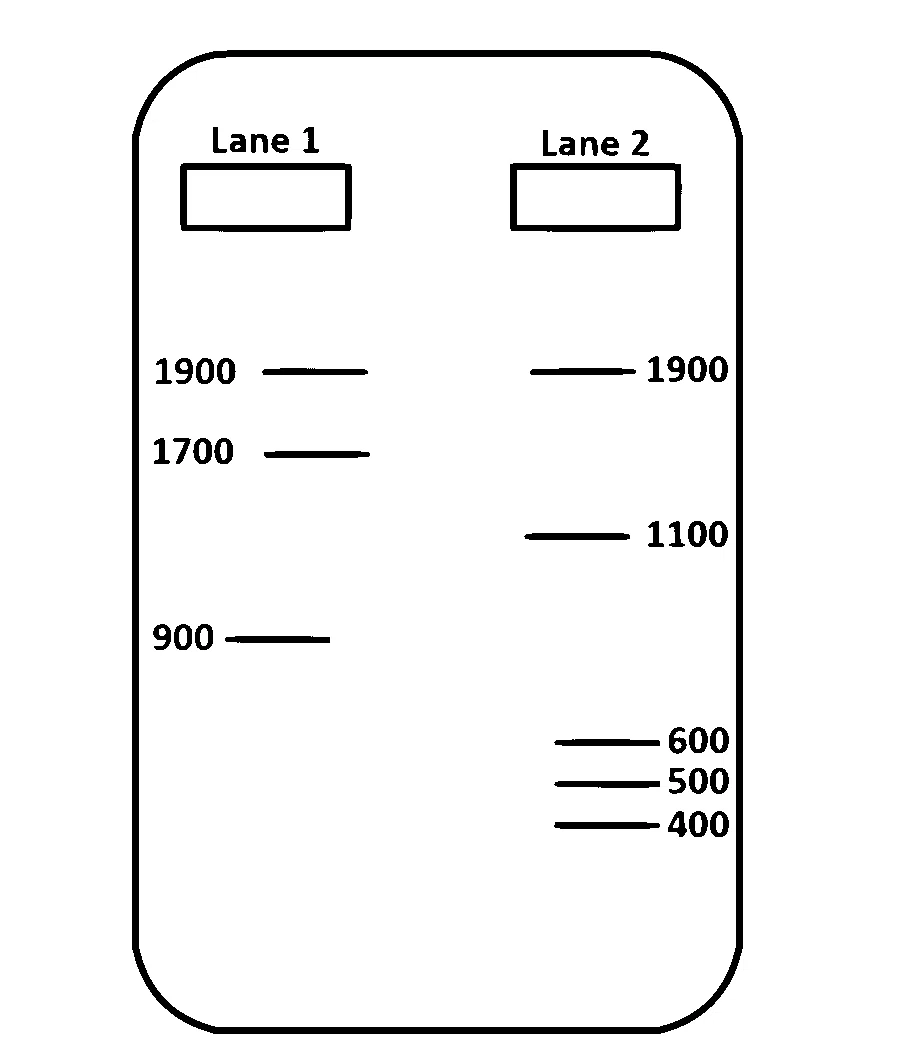

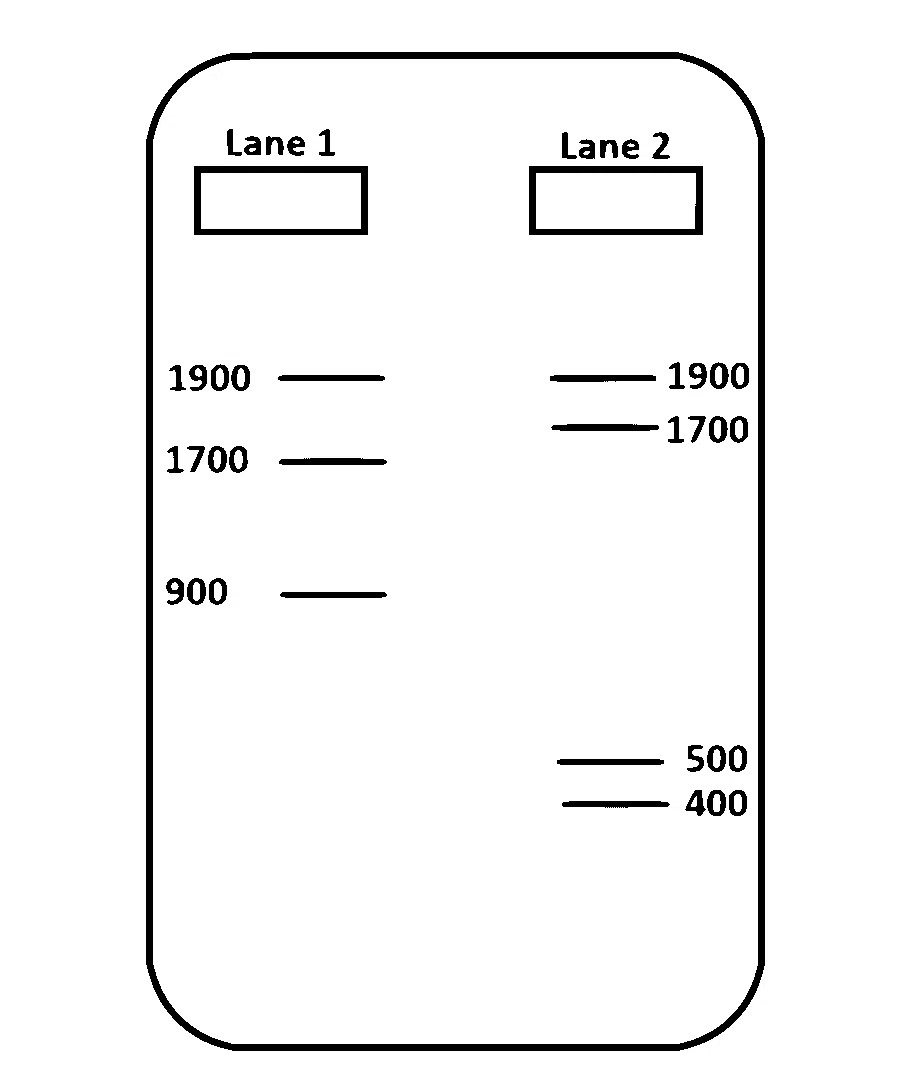

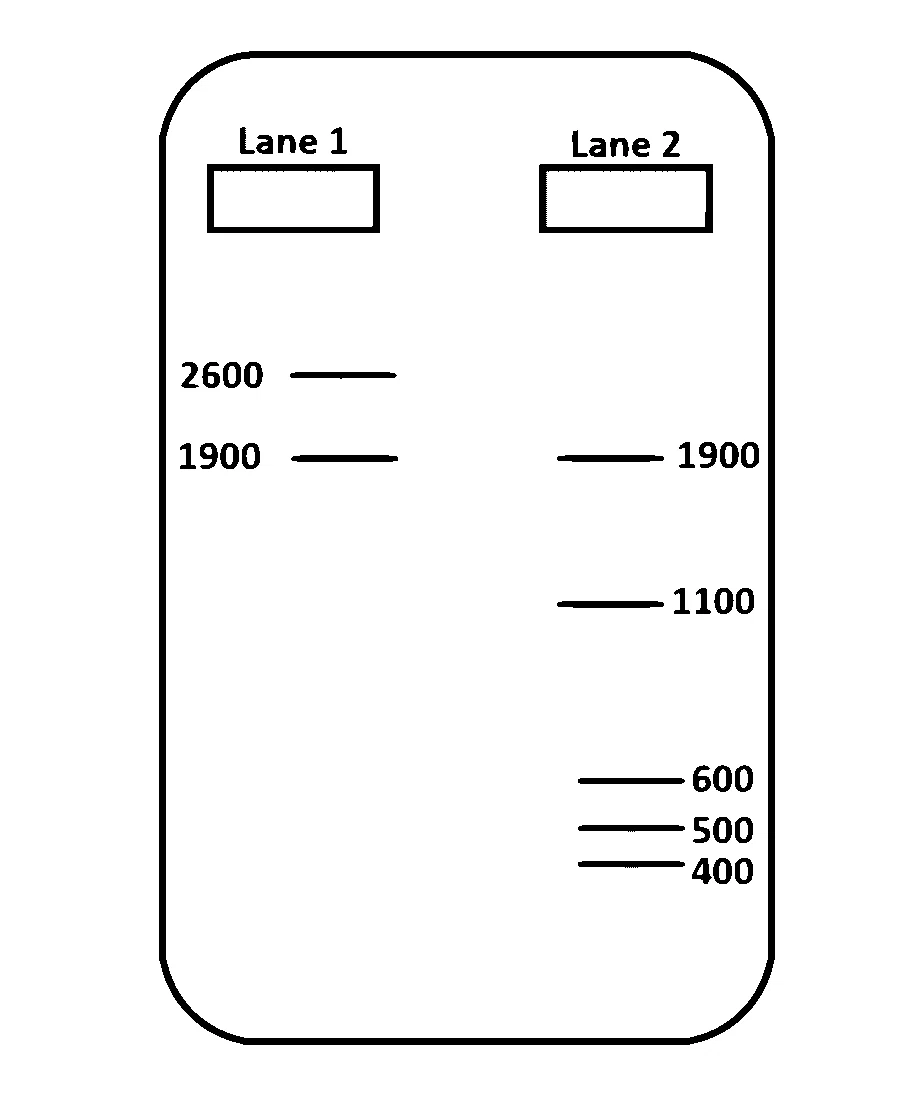

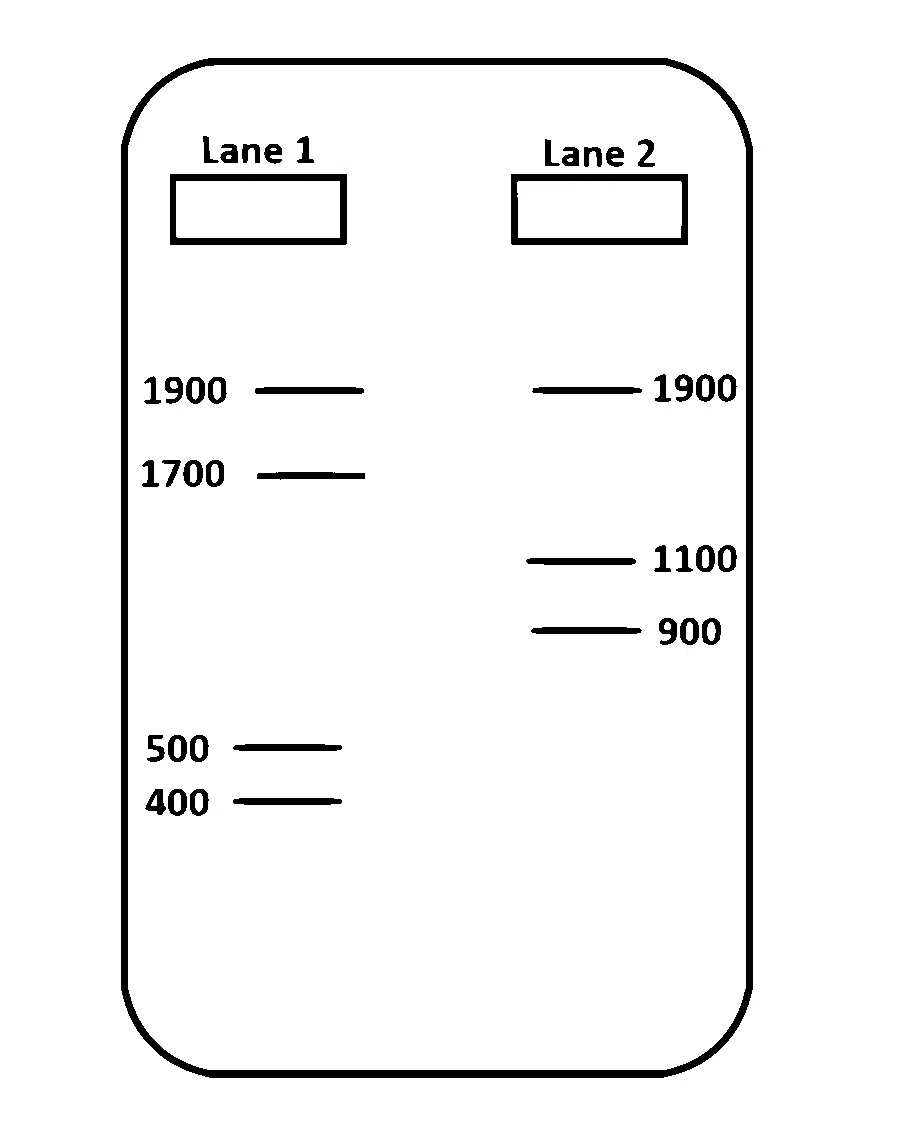

In lane 1 the products of the digestion by Not I and EcoRI was loaded. In lane 2 the products of the digestion by Not I and Hind III was loaded. Which one of the following correctly represents the agarose gel electrophoresis profile of the digested recombinant plasmid for (a) and (b), respectively?
