Electrostatics PYQBITSAT 2022

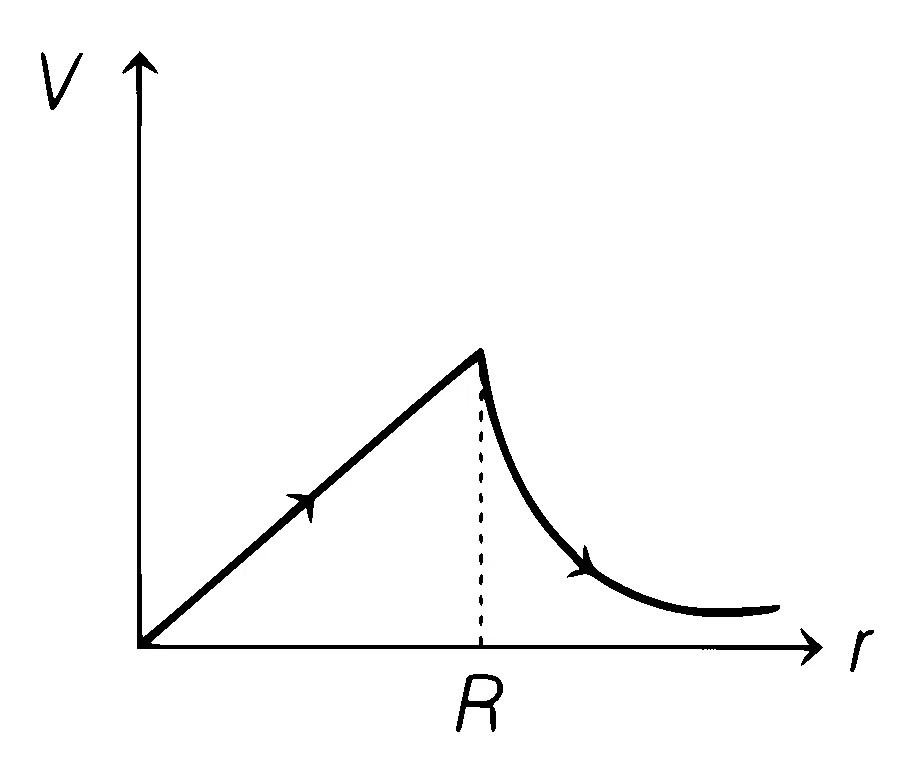

Which one of the following graphs represents the variation of electric potential with distance r from the centre of a non-conducting charged sphere of radius R?
Solution
Correct option: D
Answer: D
Step 1
For a uniformly charged non-conducting sphere, the potential at the surface is
Step 2
Inside the sphere, the potential varies as
So it is maximum at the centre and decreases parabolically up to the surface.
Step 3
At the centre,
Thus the graph starts above the surface potential value.
Step 4
Outside the sphere, it behaves like a point charge:
Hence the required graph is the one with a parabolic inside variation and a
