Laws Of Motion PYQBITSAT 2021
MCQ+3 / -12021

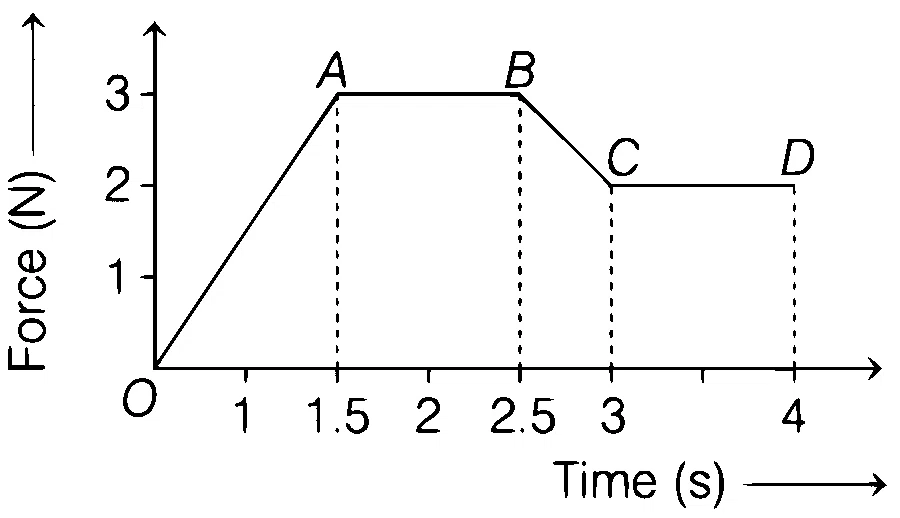

The initial speed of a body of mass 2.0 kg is 5 m/s. A force acts for 4 s in the direction of motion of the body, as shown in force-time graph. The impulse of force is

Solution
Correct option: A
Answer: 8.50 Ns
Step 1
Impulse equals the area under the force-time graph:
Step 2
Split the graph into simple regions: one triangle, one rectangle, one trapezium, and one more rectangle.
Step 3
Add their areas:
Step 4
Calculate:
