Current Electricity PYQBITSAT 2020

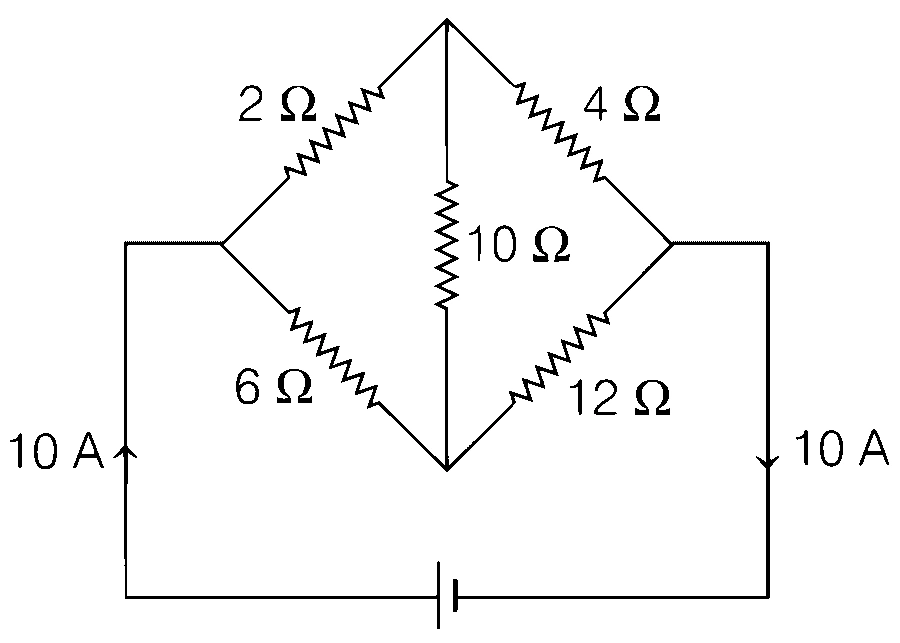

In the circuit shown, if the 10

Solution
Correct option: B
Current drawn from the battery is 10 A.
Check bridge condition
The four arm resistances satisfy
so the Wheatstone bridge is balanced.
Use balanced bridge property
In a balanced Wheatstone bridge, the potential difference across the middle branch is zero. Hence, no current flows through the central resistor.
Replace the middle resistor
Changing the central resistor from
Battery current remains same
Therefore, the current drawn from the battery remains unchanged:
