Semiconductor Devices And Logic Gates PYQAP EAPCET 2025 - 22nd May Evening Shift

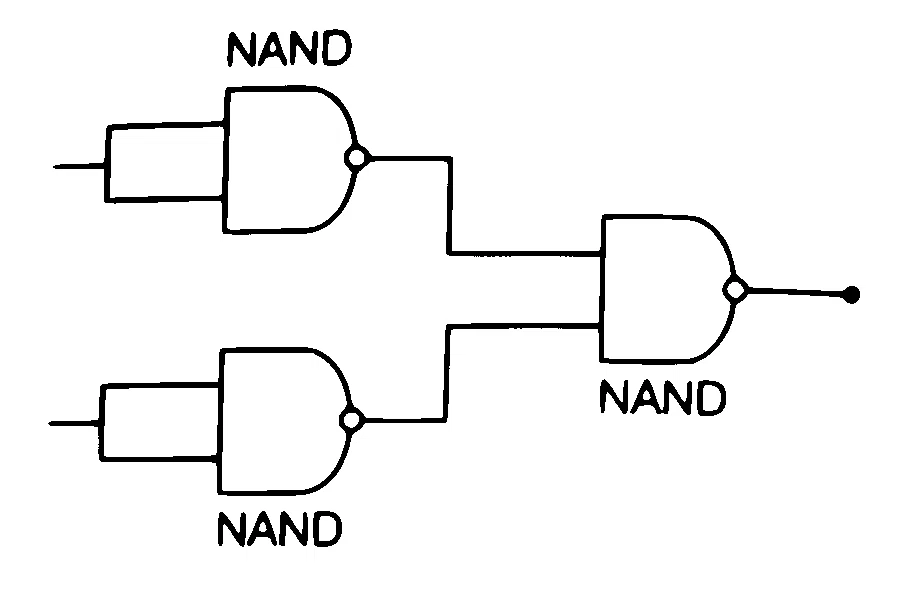

When three NAND logic gates are connected as shown in the figure, then the logic gate equivalent to the circuit is

Solution
Correct option: C
The circuit is equivalent to an OR gate.
Step 1
A NAND gate with both inputs tied together acts as an inverter.
Step 2
So the first two NAND gates give the outputs
Step 3
These two outputs are fed into the final NAND gate, so the circuit output is
Step 4
Using De Morgan's law,
This is the output of an OR gate.
Step 5
Hence, the equivalent logic gate is OR. Therefore, the correct option is C.
