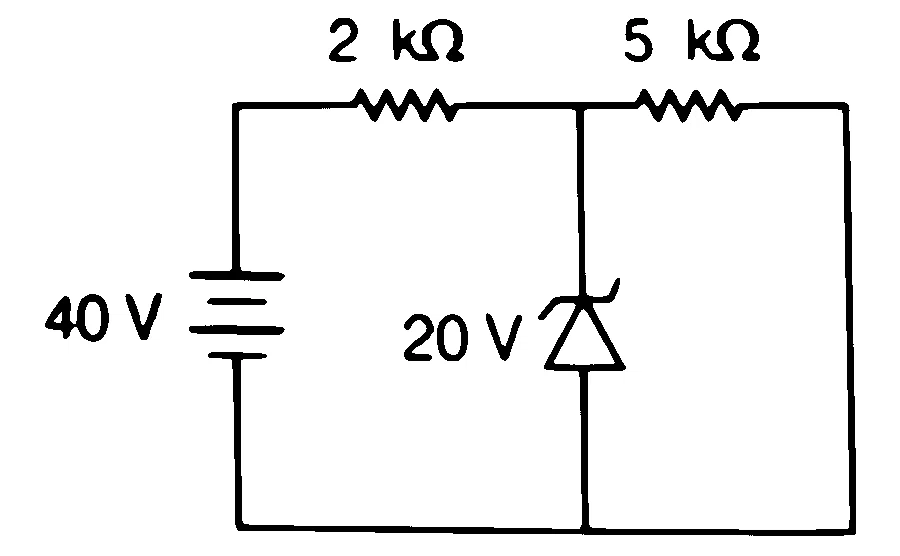

A Zener diode of breakdown voltage 20 V is connected as shown in the given circuit. The current through Zener diode is

Solution
Correct option: C
The current through the Zener diode is
Step 1
In breakdown, the Zener diode maintains a constant voltage across the load:
Step 2
Find the current supplied through the series resistance:
Step 3
Find the load current using the Zener voltage across
Step 4
The Zener current is the remaining current after the load current is taken:
So, the correct answer is C.
