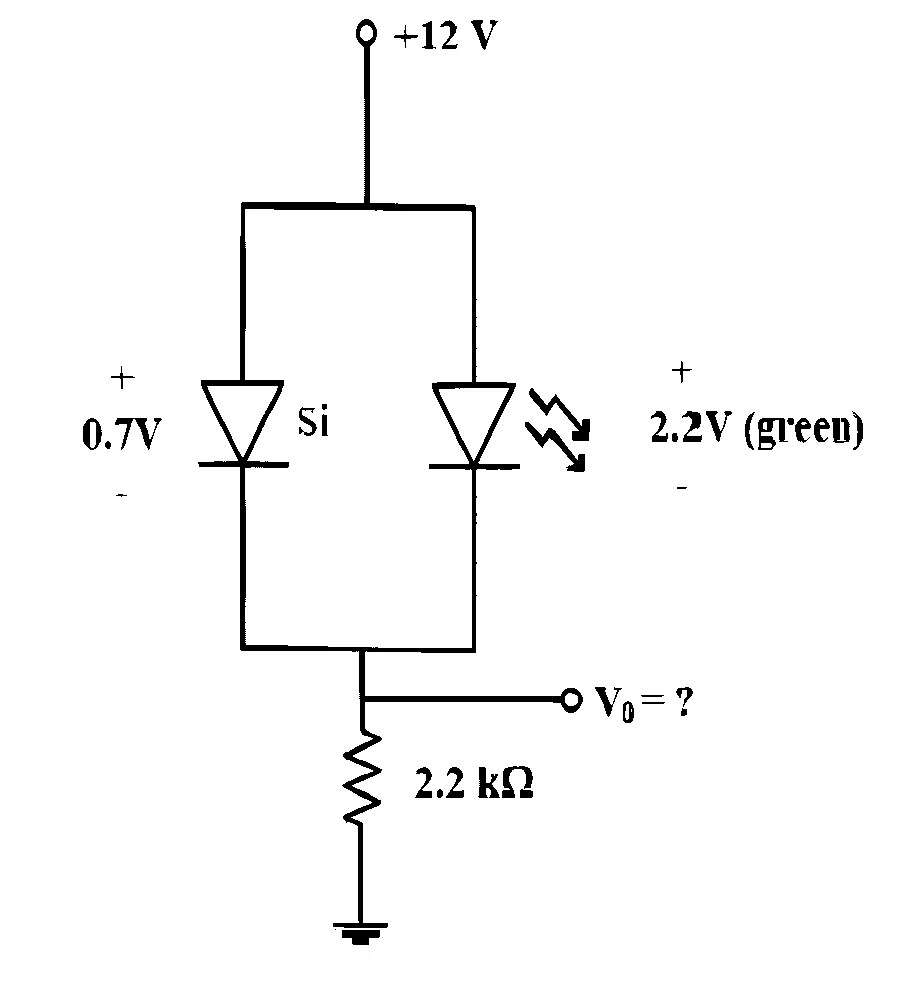

The voltage in the network shown is

Solution
Correct option: A
Answer: A.
Identify Biasing
Both diodes are forward biased, so the conducting diode will fix the required forward voltage across it.
Compare Barrier Voltages
The silicon diode has a lower potential barrier than the green diode:
Use The Conducting Drop
Hence, the minimum voltage drop across the forward-biased junction is
Find Output Voltage
Subtract this diode drop from the supply:
So,
