Current Electricity PYQAP EAPCET 2025 - 26th May Morning Shift

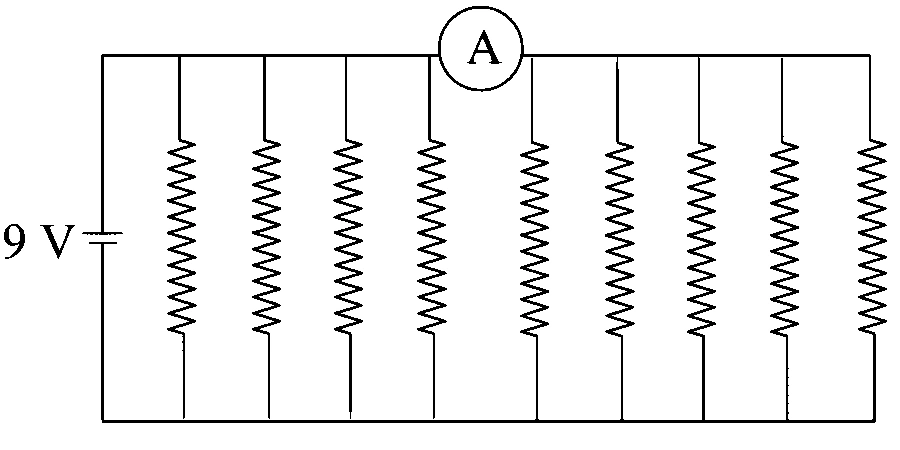

If each resistance in the figure is

Solution
Correct option: B
The ammeter reading is
Find Equivalent Resistance
The circuit has nine identical
Calculate Main Current
Hence,
Current In Each Branch
Since all nine resistors are equal and in parallel, the current divides equally. Therefore, current through each resistor is
Ammeter Reading
Only the five resistors on the right side of the ammeter contribute current through it. So the ammeter reads
Therefore, the correct option is B.
