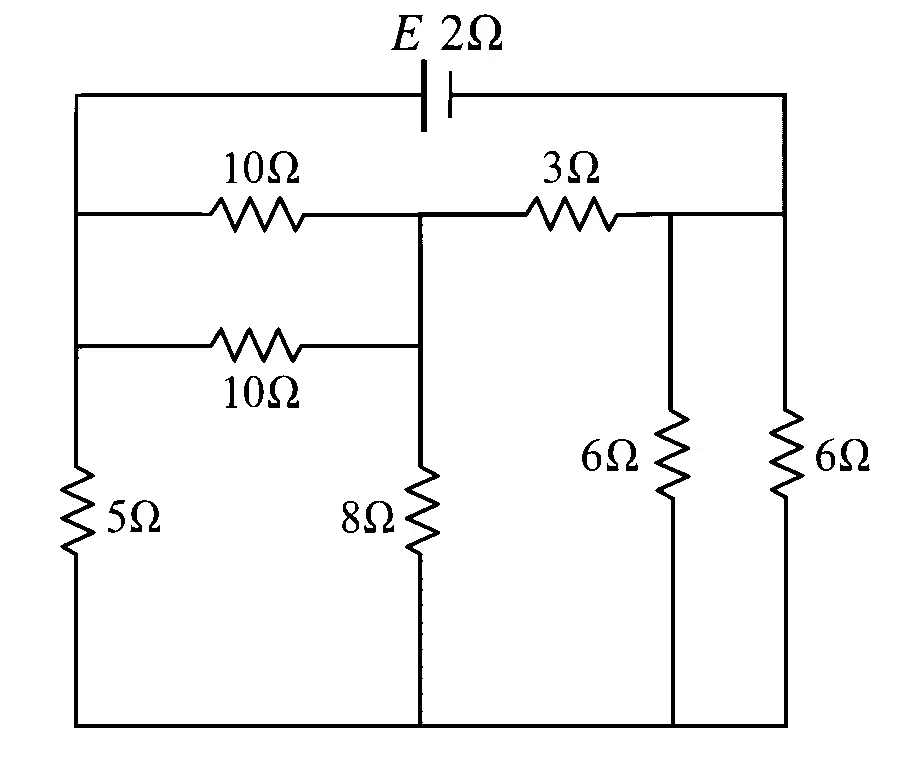

In the given circuit, if the current flowing through

Solution
Correct option: B
Identify the bridge condition
On reducing the given network as in the source, the part
Use the balanced bridge result
Since the bridge is balanced, no current flows through the middle branch. The current division in the two effective branches remains as shown in the equivalent circuit.
Find the total current
The current through the
Calculate the emf
The total effective series resistance connected with the source is
Using
