Current Electricity PYQAIIMS 2017
MCQ+1 / -0.332017

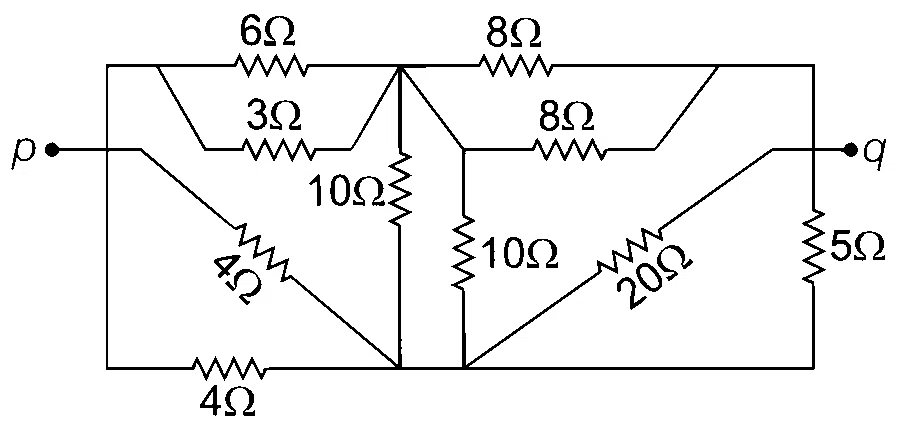

The effective resistance between p and q in
given figure is

Solution
Correct option: B
Answer: B,
Reduce the arms
The network can be redrawn as a Wheatstone bridge with equivalent arms:
Check balance condition
Compare the ratios of opposite arms:
Hence, the bridge is balanced.
Combine the two series branches
For a balanced bridge, the effective resistance is the parallel combination of
Calculate the result
Substitute the values:
