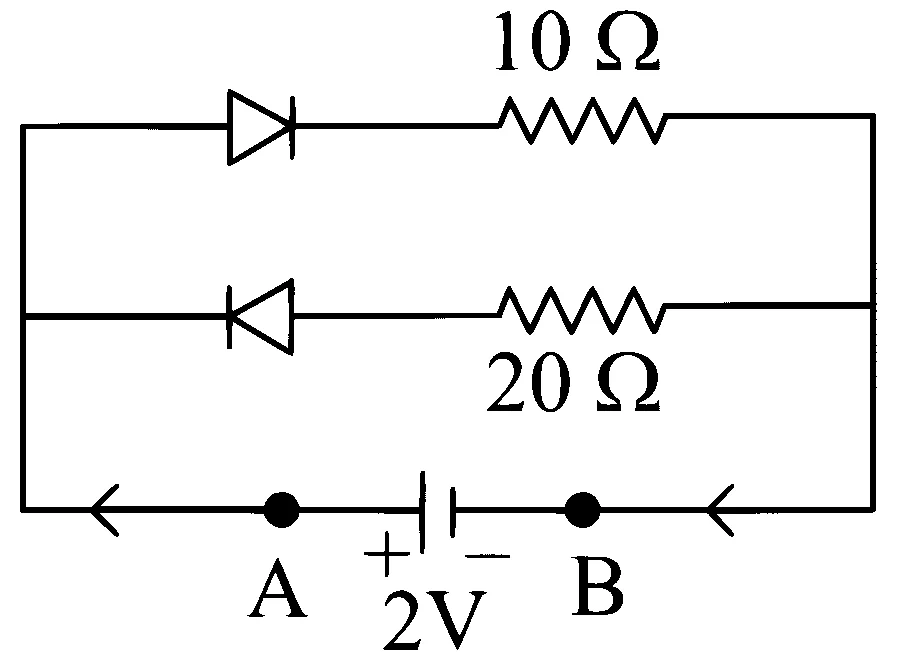

Identify conducting path
Using the given ideal-diode conditions, forward-biased diodes act as wires and reverse-biased diodes act as open circuits.
Reduce the circuit
After replacing the diodes accordingly, the cell effectively sees a resistance of
Apply Ohm's law
With a
Choose the option
Therefore, the current supplied by the cell is
