Electromagnetic Induction PYQWB JEE 2023

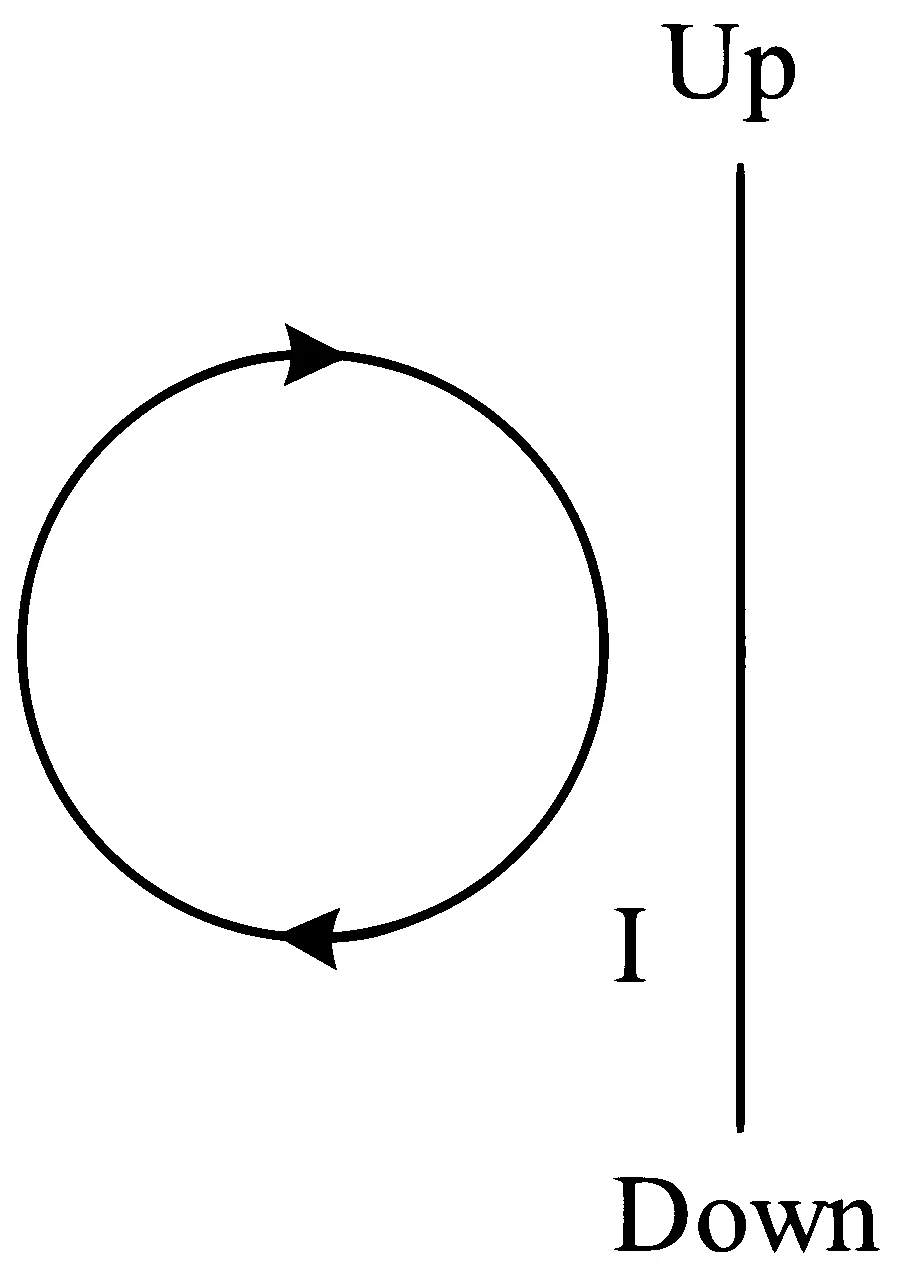

A circular coil is placed near a current carrying conductor, both lying on the plane of the paper. The current is flowing through the conductor in such a way that the induced current in the loop is clockwise as shown in the figure. The current in the wire is,
Solution
Correct option: A, C
Correct options: A and C.
Step 1
A clockwise induced current in the loop produces magnetic field into the plane of the paper.
Step 2
By Lenz's law, this induced field must oppose the change in magnetic flux through the loop.
Step 3
If the current in the straight wire is increasing upward, its magnetic field through the loop increases outward. The loop opposes this by producing an inward field, so the induced current is clockwise.
Step 4
If the current in the straight wire is decreasing downward, its magnetic field into the plane decreases. The loop supports it by producing an inward field, again giving clockwise induced current.
Step 5
Thus the wire current must be time dependent, and it may be either downward or upward. Hence options A and C are correct.
