WB JEE
Heat And Thermodynamics PYQWB JEE 2022

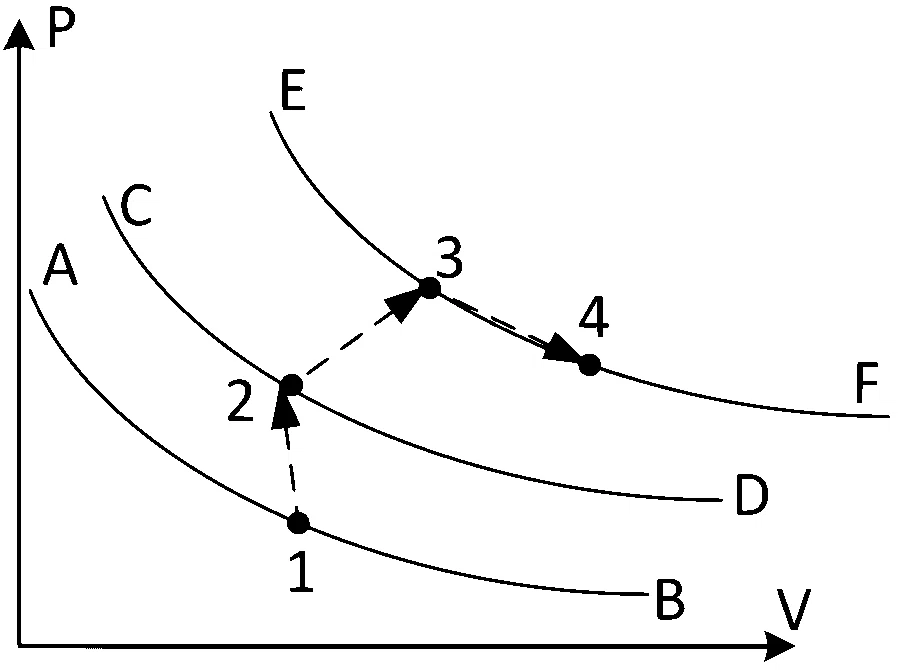

Certain amount of an ideal gas is taken from its initial state 1 to final state 4 through the paths 1

Solution
Correct option: A
Relate speed to temperature
For an ideal gas, the most probable speed is
So,
Compare the isotherms
From the graph, the isotherm EF has the highest temperature, followed by CD, then AB.
Use same-isotherm points
Points 3 and 4 lie on the same isotherm EF, so they have the same temperature and hence the same
Arrange the speeds
Since EF is hotter than CD and AB,
Therefore, the correct option is A.
