Semiconductor Devices And Logic Gates PYQVITEEE 2022
MCQ+4 / -12022

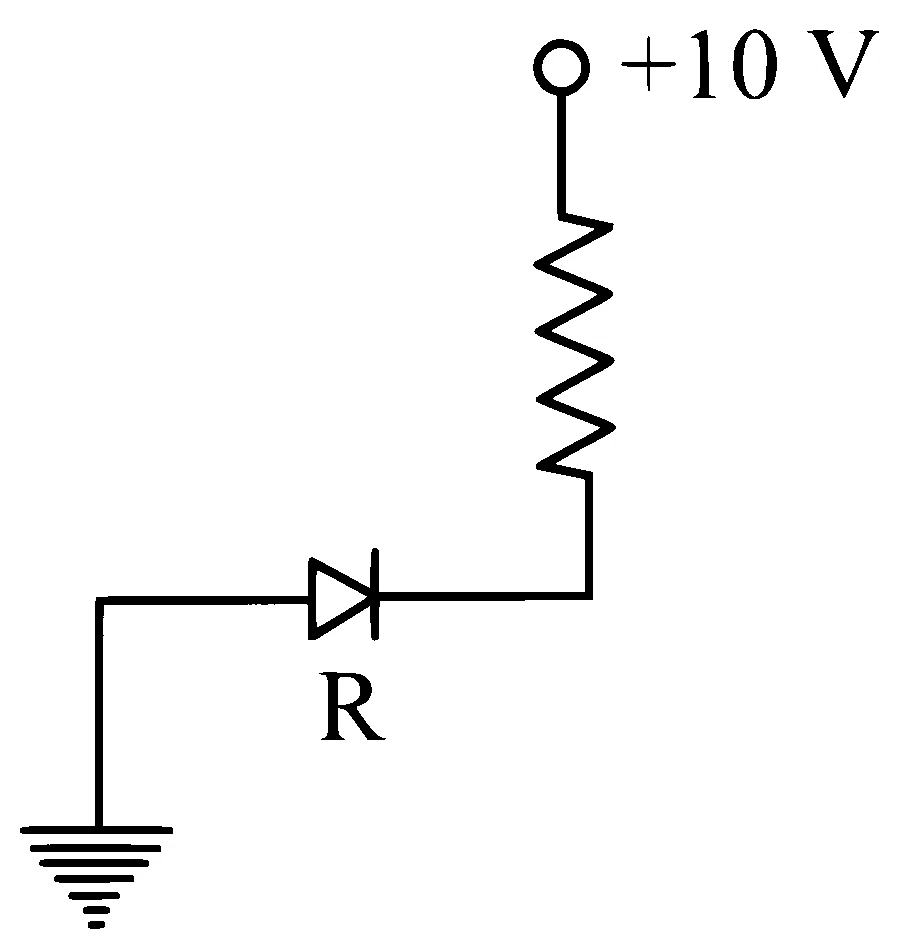

Which of the following is arranged in forward bias?
Solution
Correct option: C
The forward-biased arrangement is C.
Use the forward-bias condition
A diode is forward biased when the p-side is at a higher potential than the n-side.
Check option C
In option C, the p-side is connected to
Compare potentials
Since
Conclusion
Thus, the diode in option C satisfies the condition for forward bias.
