Electromagnetic Induction PYQTS EAMCET 2023 (Online) 14th May Evening Shift

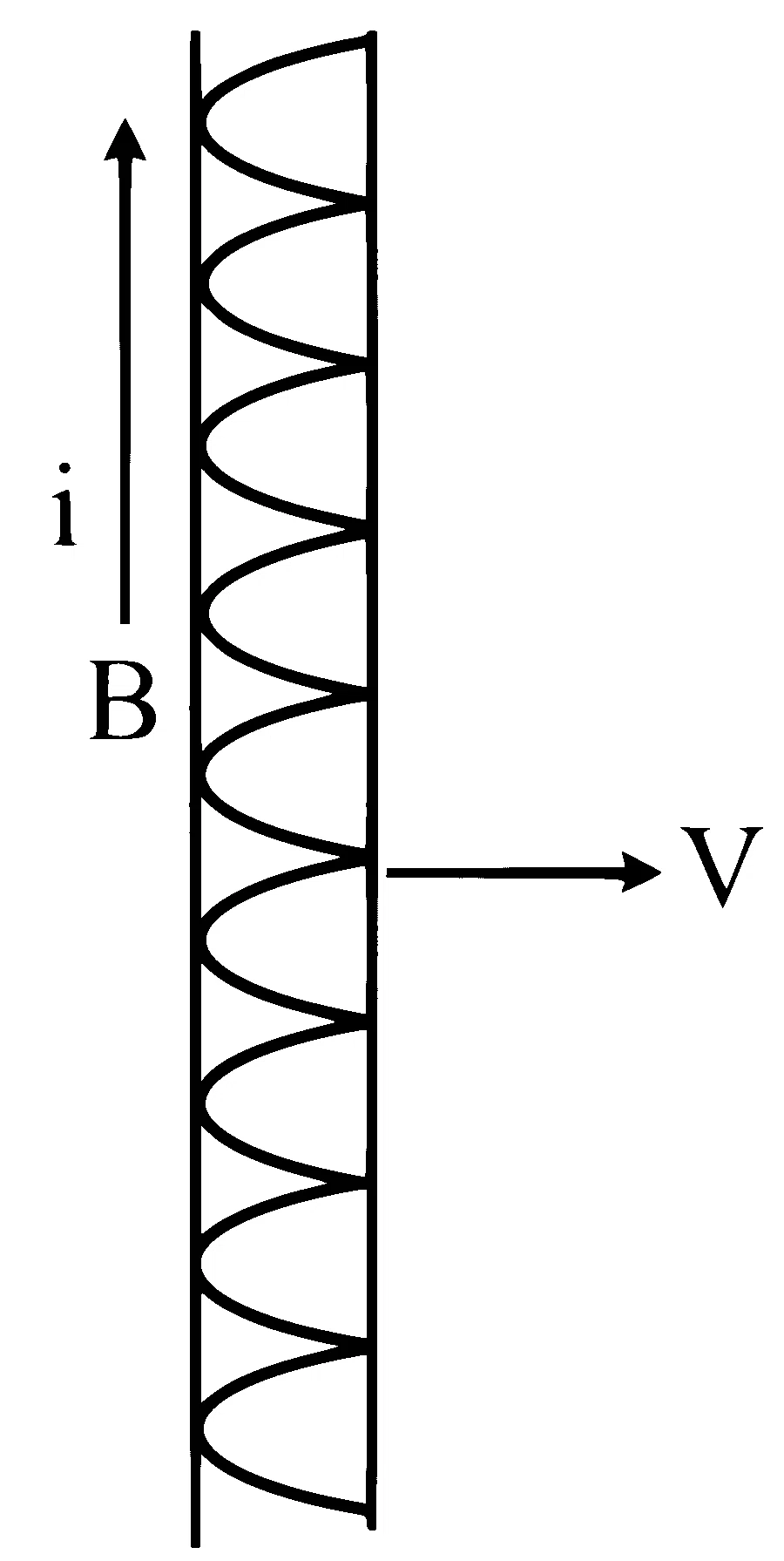

A conducting rod is moving towards right with a velocity

Solution
Correct option: C
The magnetic field is perpendicular to the plane of the paper and into the paper.
Use the required rule
For a moving conductor, the direction of induced current is found using Fleming's right-hand rule.
Set the thumb direction
The thumb represents the motion of the conductor. Since the rod moves towards the right, point the thumb to the right.
Match the current direction
The middle finger represents the induced current. Adjust the right hand so that the middle finger points in the direction of the current shown in the figure.
Read the field direction
The forefinger then gives the magnetic field direction. It points perpendicular to the plane of the paper and into the paper.
Hence, the correct option is C.
