Properties Of Matter PYQNEET 2022 Phase 1

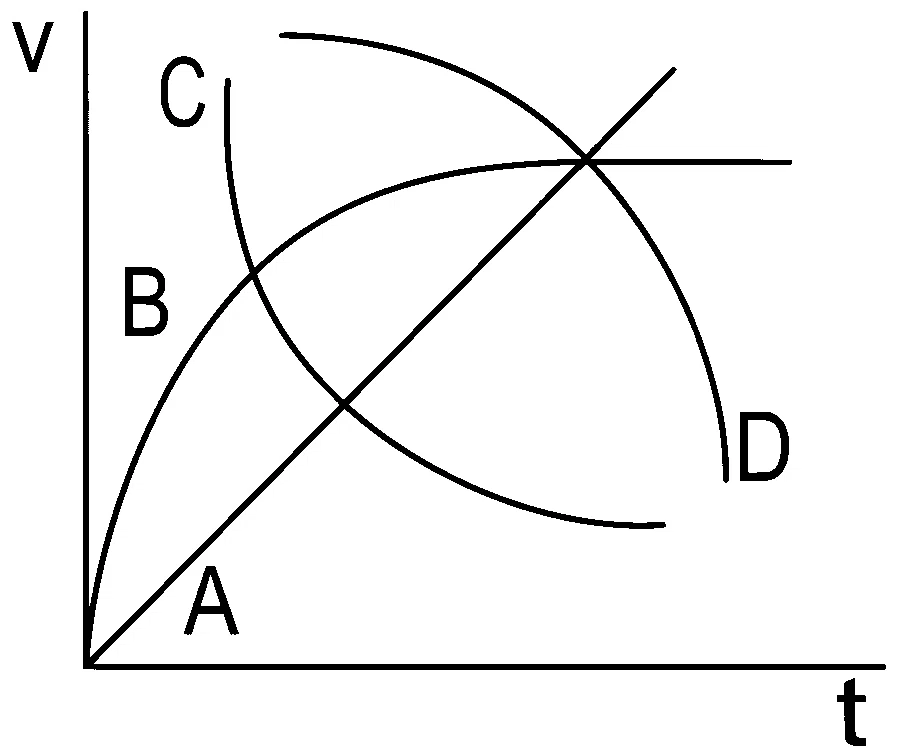

A spherical ball is dropped in a long column of a highly viscous liquid. The curve in the graph shown, which represents the speed of the ball (v) as a function of time (t) is

Solution
Correct option: B
Answer: B
Start From Rest
When the ball is dropped, its initial speed is zero, so the graph must begin from
Acceleration Reduces
As speed increases, viscous drag also increases. Hence the net downward force gradually decreases.
Terminal Speed
Finally, drag balances the effective weight, so acceleration becomes zero and the ball moves with constant terminal speed.
Match The Curve
The correct graph rises from zero and then becomes horizontal at terminal speed. Therefore, the curve is B.
