Oscillations PYQNEET 2022 Phase 2
Match List-I with List-II
| List-I (x-y graphs) | List-II (Situations) | ||
|---|---|---|---|
| (a) | ![]() | (i) | Total mechanical energy is conserved |
| (b) | ![]() | (ii) | Bob of a pendulum is oscillating under negligible air friction |
| (c) | ![]() | (iii) | Restoring force of a spring |
| (d) | ![]() | (iv) | Bob of a pendulum is oscillating along with air friction |
Choose the correct answer from the options given below
Solution
Correct option: C
Correct matching: (a)-(iv), (b)-(iii), (c)-(ii), (d)-(i). Hence, the answer is C.
Check Graph (a)
In graph (a), the amplitude keeps decreasing with time. This indicates damping due to air friction, so (a) matches (iv).
Check Graph (b)
Graph (b) represents a straight-line restoring force relation:
This is the restoring force of a spring, so (b) matches (iii).
Check Graph (c)
In graph (c), the amplitude remains constant. This corresponds to a pendulum oscillating with negligible air resistance, so (c) matches (ii).

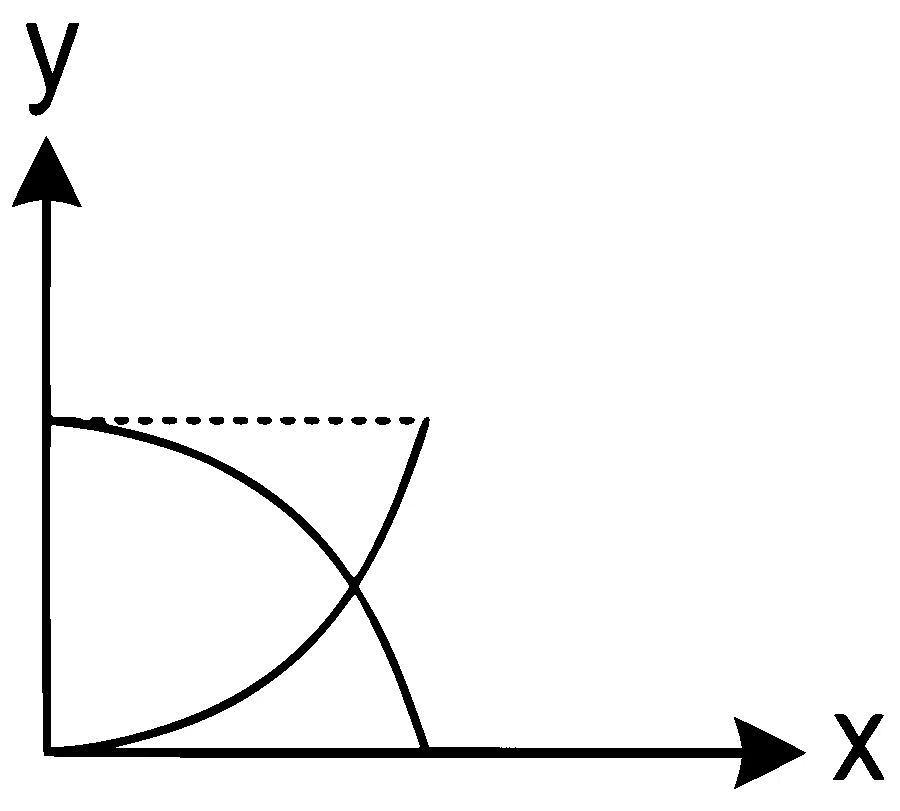

Check Graph (d)
For SHM,
Hence total energy is
So (d) matches (i).
Final Match
Thus, the correct order is (a)-(iv), (b)-(iii), (c)-(ii), (d)-(i), which is option C.
