Gaseous State PYQNEET 2021
MCQ+4 / -12021

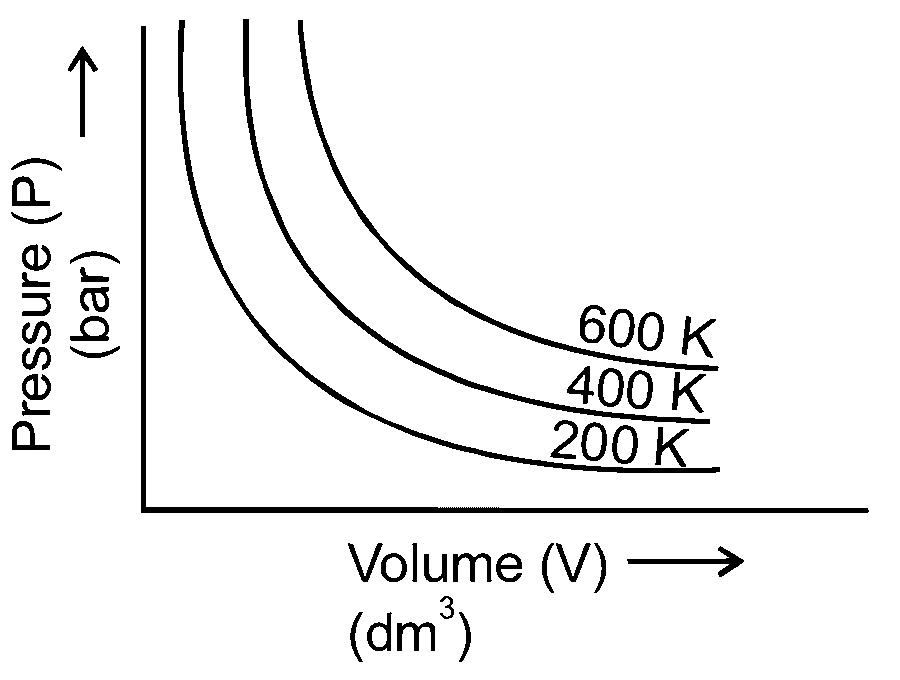

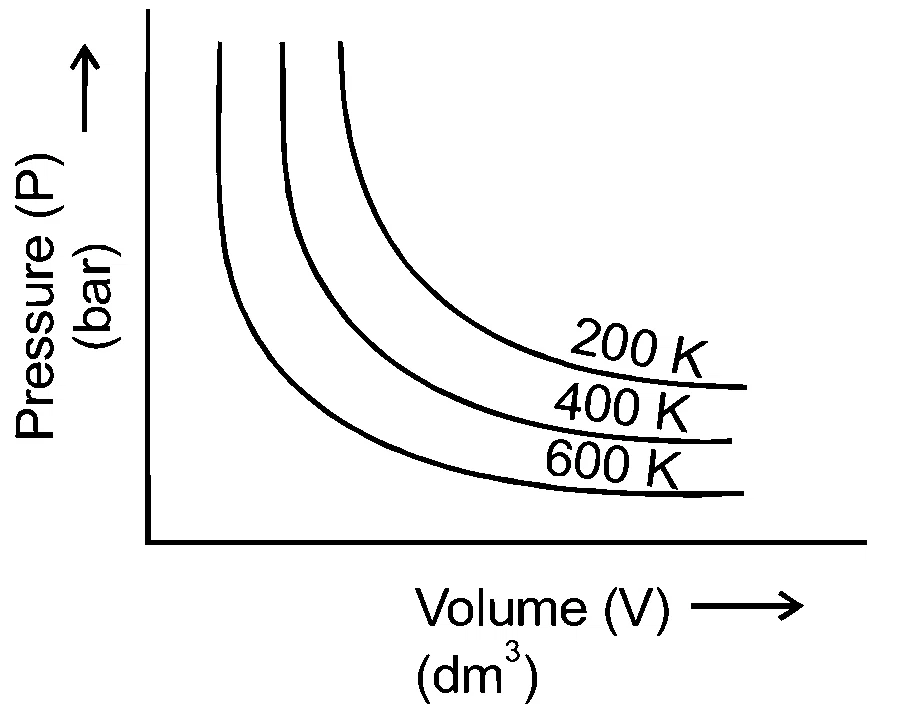

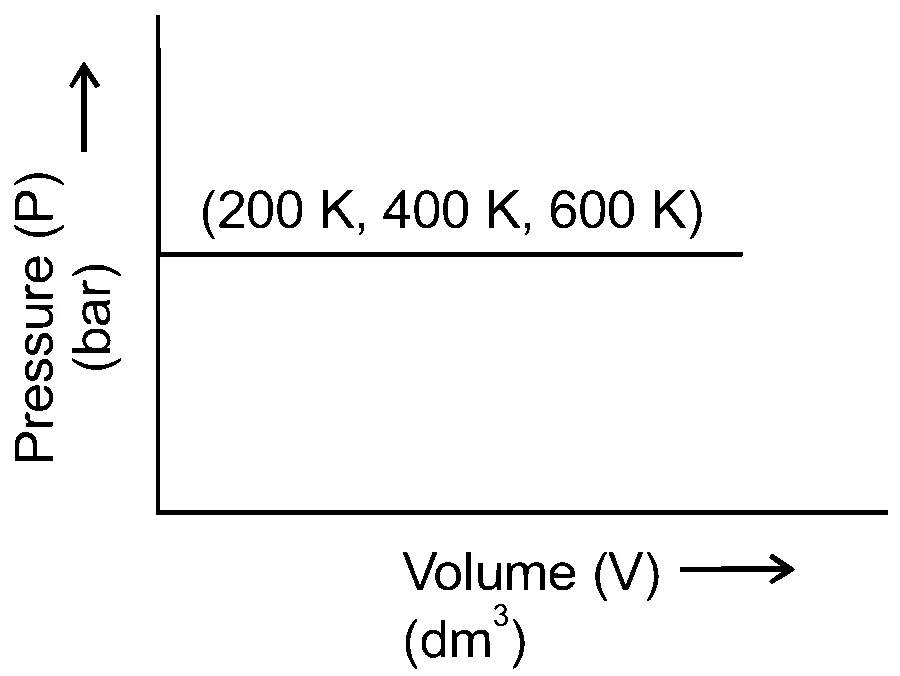

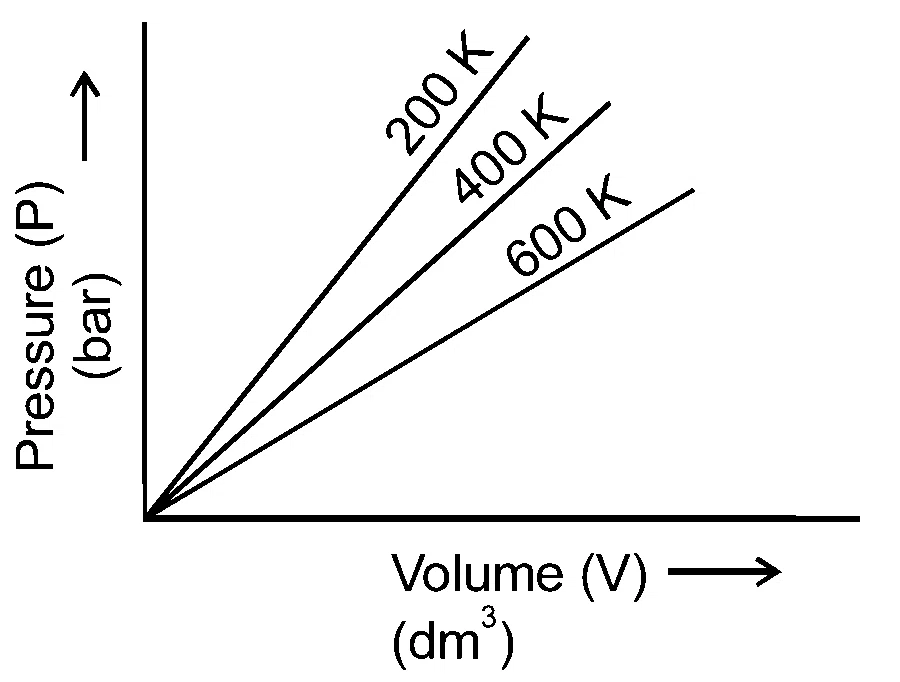

Choose the correct option for graphical representation of Boyle's law, which shows a graph of pressure vs. volume of a gas at different temperatures :
Solution
Correct option: A
Answer: A
Use Boyle's law
For a fixed amount of gas at constant temperature, pressure is inversely proportional to volume.
Write the relation
So,
Connect constant with temperature
Here
Compare the curves
As temperature increases, the gas has a larger volume for corresponding pressure, so the
Select the graph
The graph matching this behaviour is option A.
