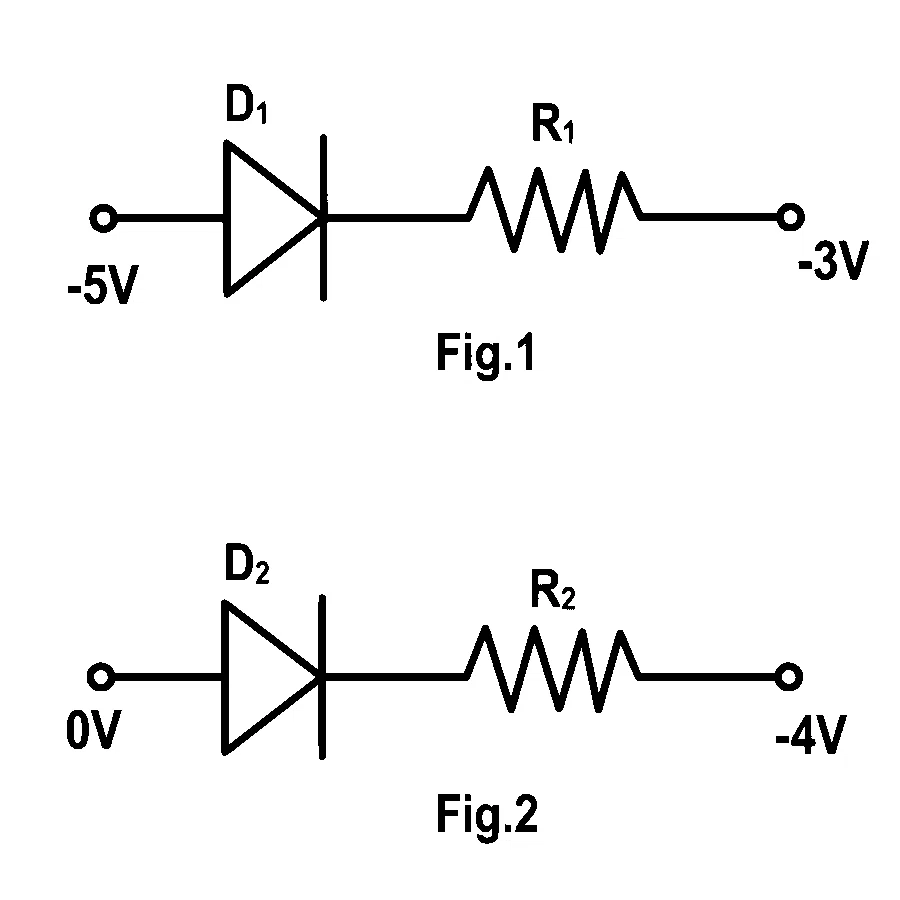

Out of the following statements, which one is true?
Diode in
A) fig (1) and fig (2) are both forward biased.
B) fig (1) and fig (2) are both reverse biased.
C) fig (1) is forward biased and in fig (2) is reverse biased.
D) fig (1) is reverse biased and in fig (2) is forward biased.
Solution
Correct option: A
Use the biasing rule
For a diode, forward bias means the p-side is at higher potential:
Check figure (1)
In fig. (1), the p-side of
Decide bias for figure (1)
Since
Check figure (2)
In fig. (2), the p-side of
Final conclusion
Since
