MHT CET
Rotational Motion PYQMHT CET 2026 18th April Evening Shift
MCQ+1 / -02026

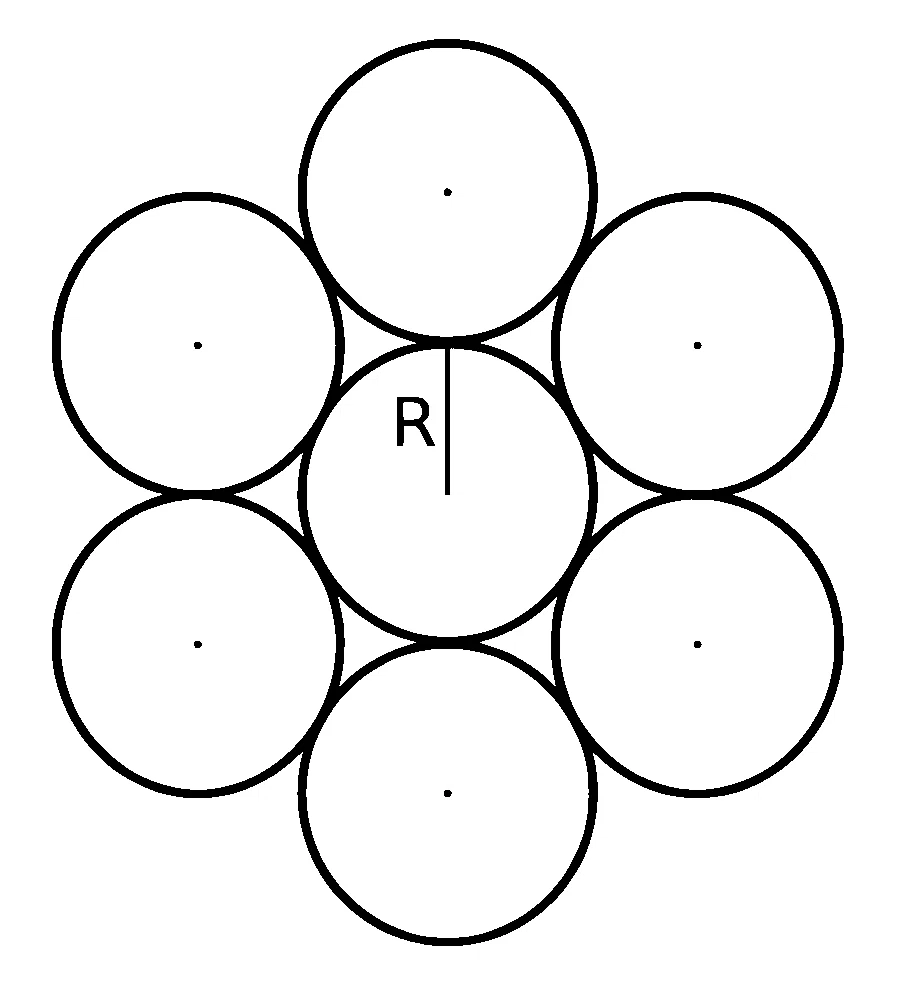

Given identical rings are arranged in a hexagonal plane pattern so as to touch each neighbouring ring as shown in figure. Each ring has mass M and radius R. The moment of inertia of the system of seven rings about an axis passing through the centre of central ring and normal to plane of all rings is


Solution
Correct option: A
Start with the central ring
The axis passes through the centre of the middle ring and is perpendicular to its plane. For a thin ring,
Find the distance for outer rings
Each surrounding ring touches the central ring, so the distance between their centres is
Apply parallel axis theorem
For one outer ring,
Add all six outer rings
The six surrounding rings together contribute
Calculate total moment of inertia
Adding the central ring,
Thus, the answer is
