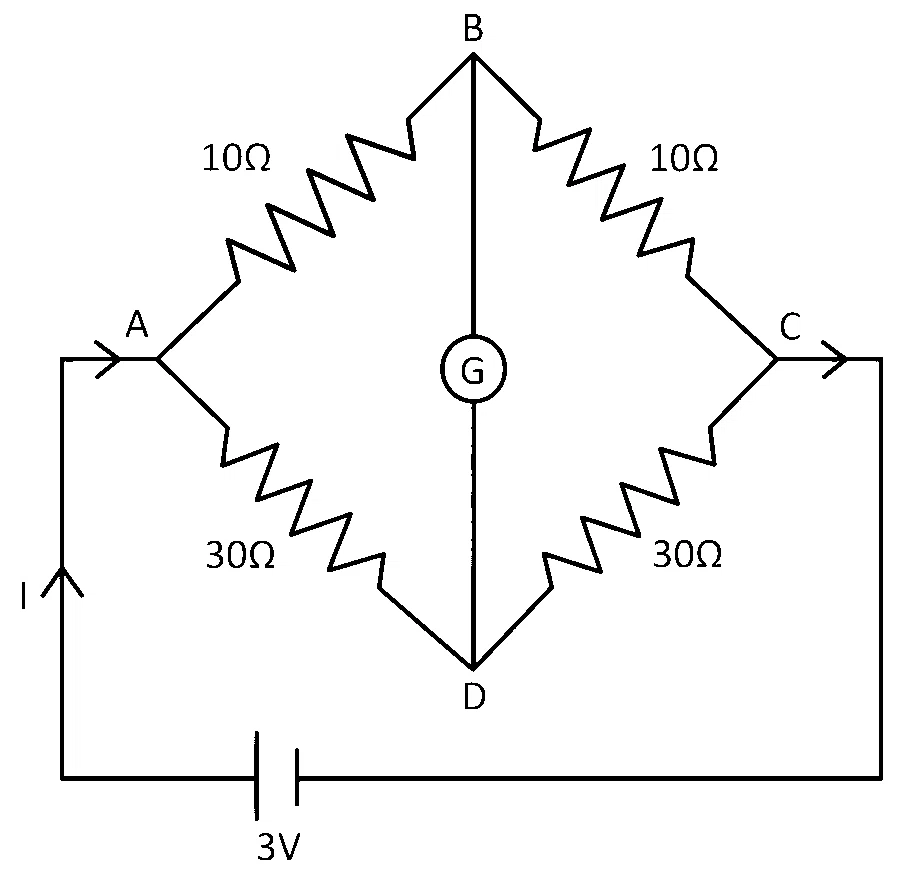

Resistances are joint as shown in the figure. In the balanced condition, the current drawn from the battery is


Solution
Correct option: C
Check bridge balance
The circuit is a Wheatstone bridge. The arm ratios are
Since the ratios are equal, the bridge is balanced.
Remove middle branch effect
In balanced condition, no current flows through branch
Find branch resistances
Upper branch:
Lower branch:
Calculate equivalent resistance
The two branches are in parallel, so
Thus,
Apply Ohm's law
With battery voltage
Hence, the current drawn is
