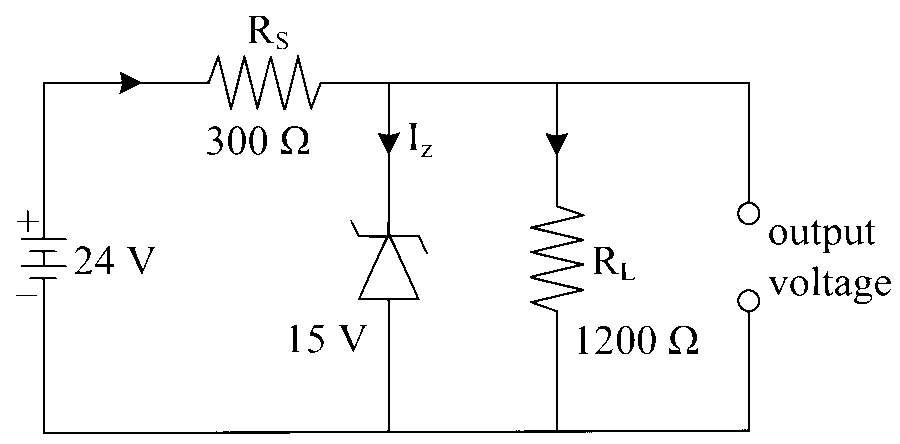

In the circuit diagram shown in figure, the current through the zener diode is

Solution
Correct option: B
17.5 mA
Step 1
The zener diode maintains a fixed voltage of
Step 2
Current through the
Step 3
The voltage across the series
Step 4
So, current through the
Step 5
The zener current is the excess current after the load current:
