Magnetism And Matter PYQMHT CET 2024 10th May Morning Shift

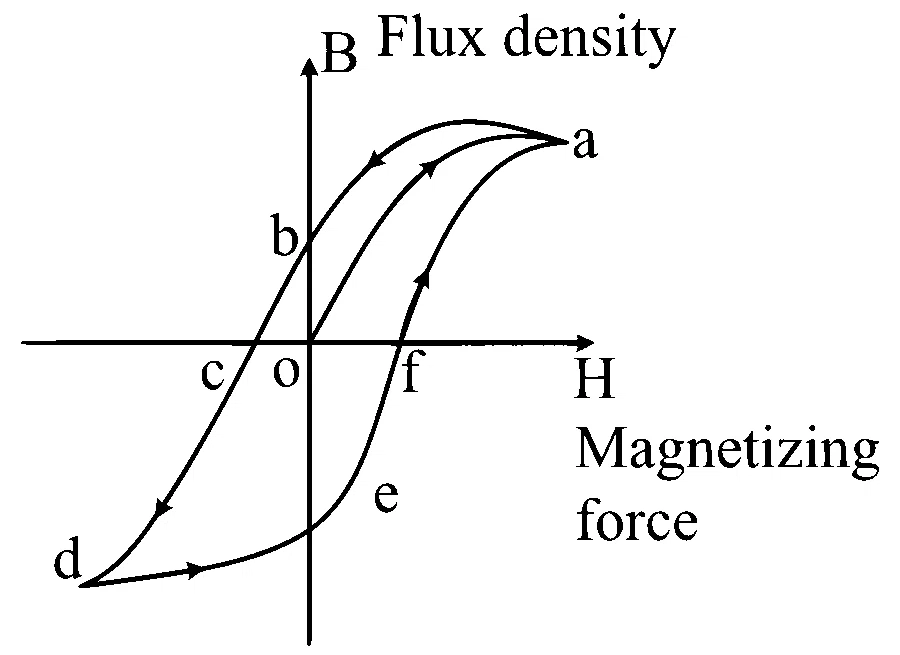

In the following graph of flux density versus magnetizing force, coercivity and retentivity are respectively represented by the points

Solution
Correct option: A
Answer: A
Identify the axes
The graph is a hysteresis curve with flux density
Locate coercivity
Coercivity is the reverse magnetizing force required to make
Locate retentivity
Retentivity is the remaining flux density when
Select the option
Thus, coercivity and retentivity are represented respectively by c, b.
