Current Electricity PYQMHT CET 2024 9th May Evening Shift

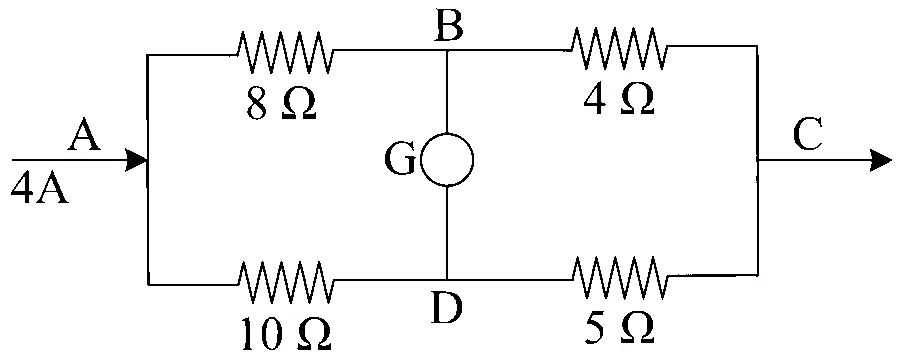

Potential difference between the points A and B is nearly

Solution
Correct option: C
Answer: 18 V
Step 1
The circuit forms a balanced Wheatstone bridge because the corresponding resistance ratios are equal. Hence, no current flows through the middle branch.
Step 2
So the two side branches act as parallel combinations: one branch has
Step 3
Find the equivalent resistance between A and C:
Step 4
The voltage across A and C is
Step 5
Current in the
Therefore,
