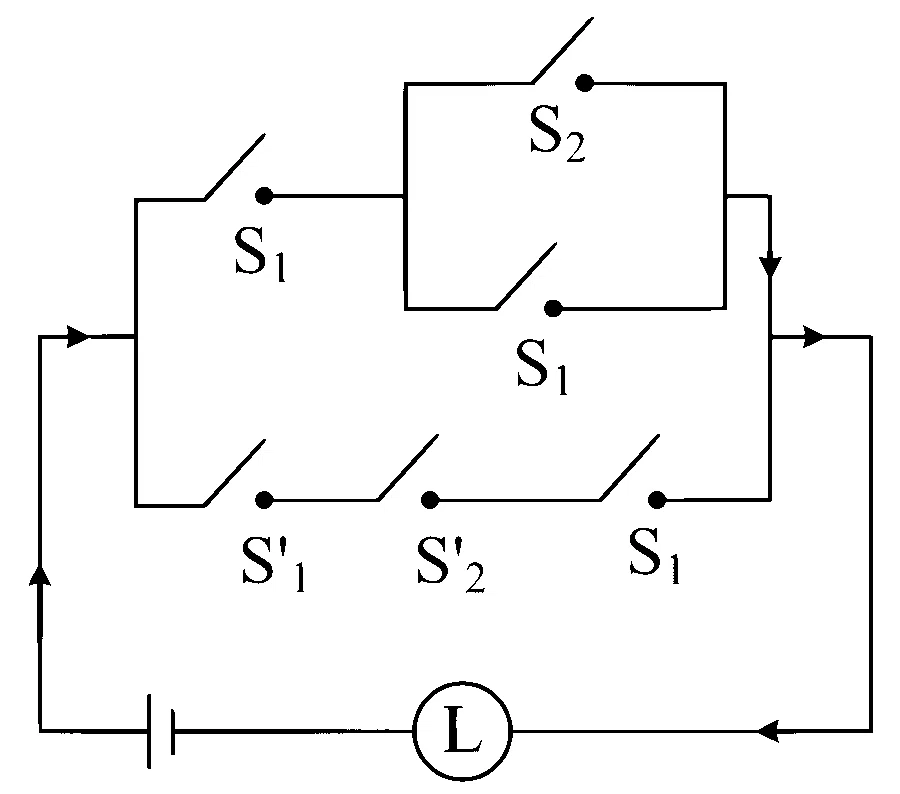

The new switching circuit for the following circuit by simplifying the given circuit is

Solution
Correct option: C
The given circuit simplifies to only p. Hence, the correct option is C.
Write the circuit symbolically
The given switching circuit represents
Combine the negated terms
Using De Morgan's law,
So the expression becomes
Take common factor
Factor out
Use complement and identity laws
Since
Choose the simplified circuit
Thus, the circuit reduces to a single switch
