Semiconductor Devices And Logic Gates PYQMHT CET 2023 13th May Morning Shift

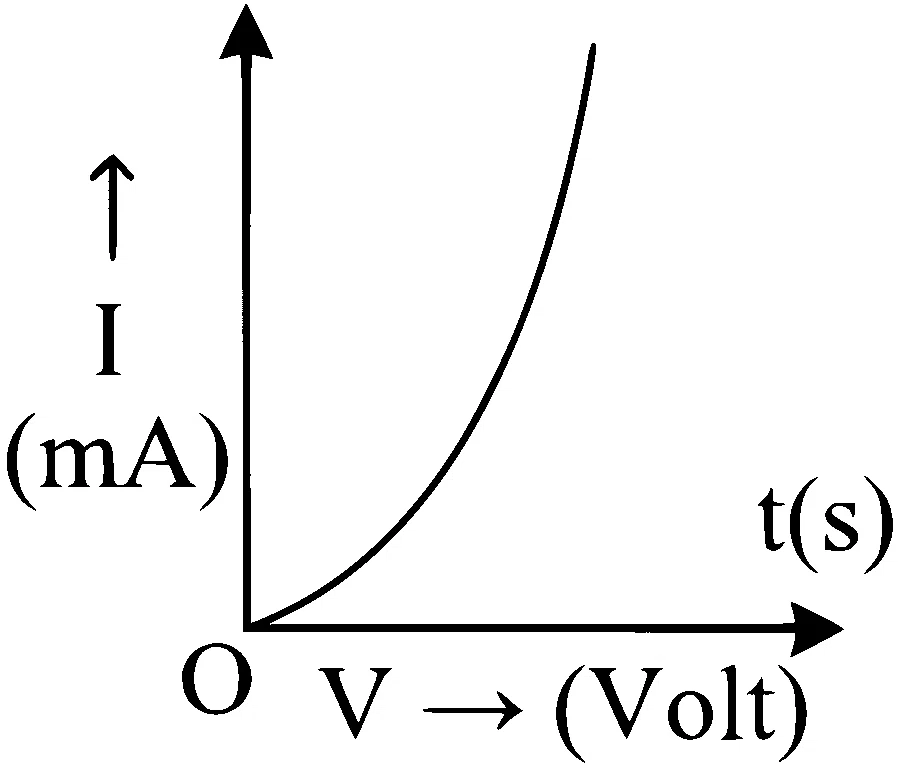

The following graph represents

Solution
Correct option: D
Answer: D. forward bias characteristics of a LED
Step 1
Notice that the graph shows current increasing as the applied voltage is increased in forward bias.
Step 2
For an LED, once the forward voltage becomes sufficient, charge carriers recombine across the junction.
Step 3
This recombination releases energy as light, so the rising forward current corresponds to light emission.
Step 4
Hence, the graph represents the forward bias characteristics of a LED.
