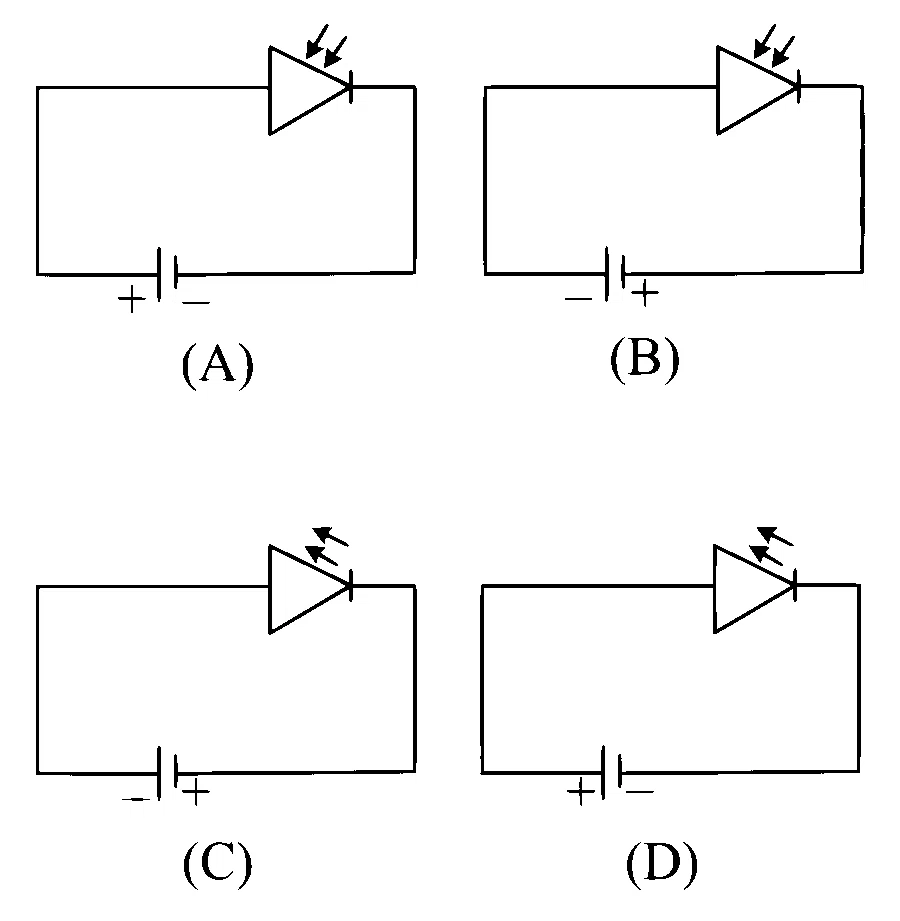

Identify the correct circuit diagrams for the normal operation from the following.

Solution
Correct option: D
The correctly operating circuits are (B) and (D).
Check Photodiode Biasing
A photodiode normally works when it is connected in reverse bias.
Identify Circuit B
Circuit (B) shows a photodiode with reverse biasing, so it can operate properly.
Check LED Biasing
An LED emits light during normal operation when it is connected in forward bias.
Identify Circuit D
Circuit (D) shows an LED with forward biasing, so it is also correct.
Conclusion
Thus, the correct pair is (B), (D). Hence, the correct option is D.
