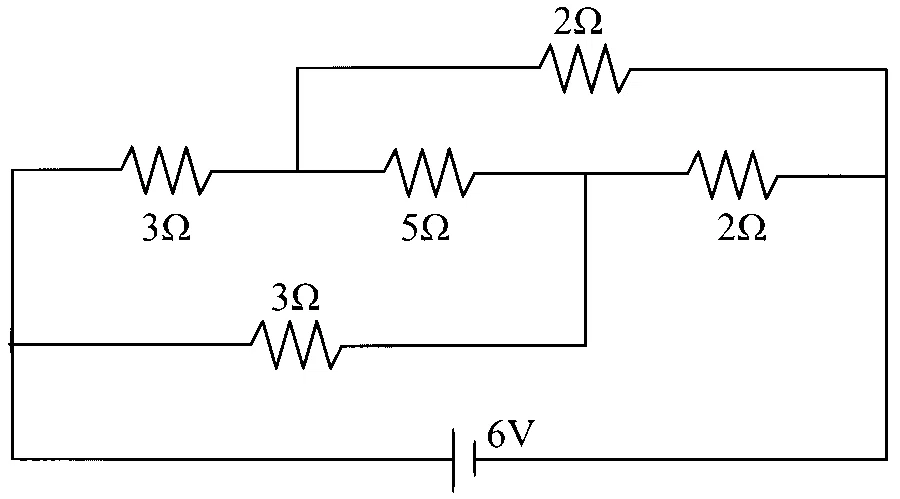

The current drawn from the battery in the given network is (Internal resistance of the battery is negligible)

Solution
Correct option: A
Equivalent resistance is
Identify the bridge condition
The network can be redrawn as a Wheatstone bridge. Since it is balanced, the potential difference across the middle
Remove the inactive branch
No current flows through that
Combine series resistors
In each active branch,
Find net resistance and current
The two
