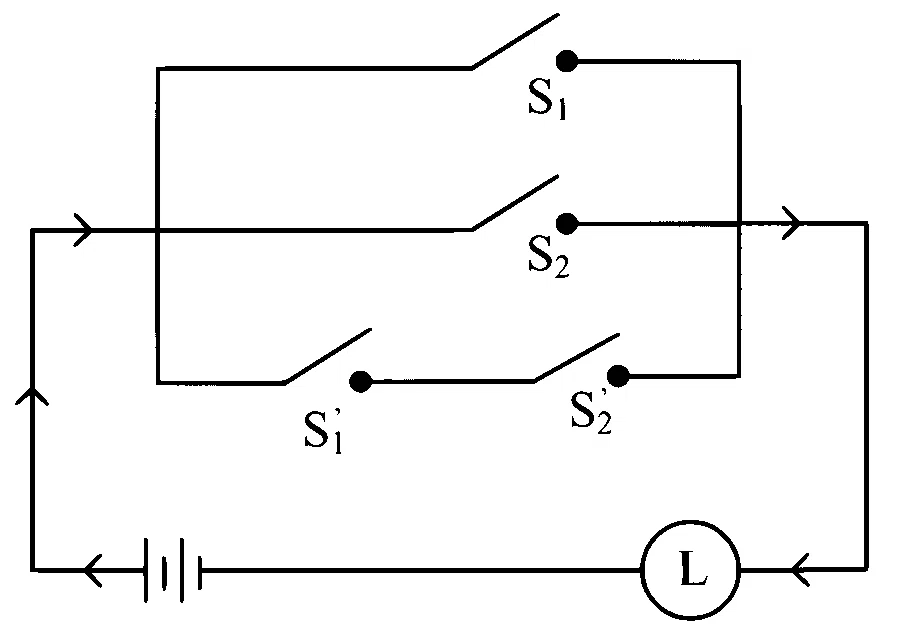

The symbolic form of the following circuit is (where

Solution
Correct option: C
Symbolic form:
Step 1
Here,
Step 2
The branches containing
Step 3
Within the third branch,
Step 4
Therefore, the complete circuit is represented by:
Hence, the correct option is C.
