Semiconductor Devices And Logic Gates PYQMHT CET 2019 3rd May Morning Shift
Solution
Correct option: B
Option B
Identify the Device
An LED works as a diode under forward bias.
Use the Correct Characteristic
So its
Eliminate Other Graphs

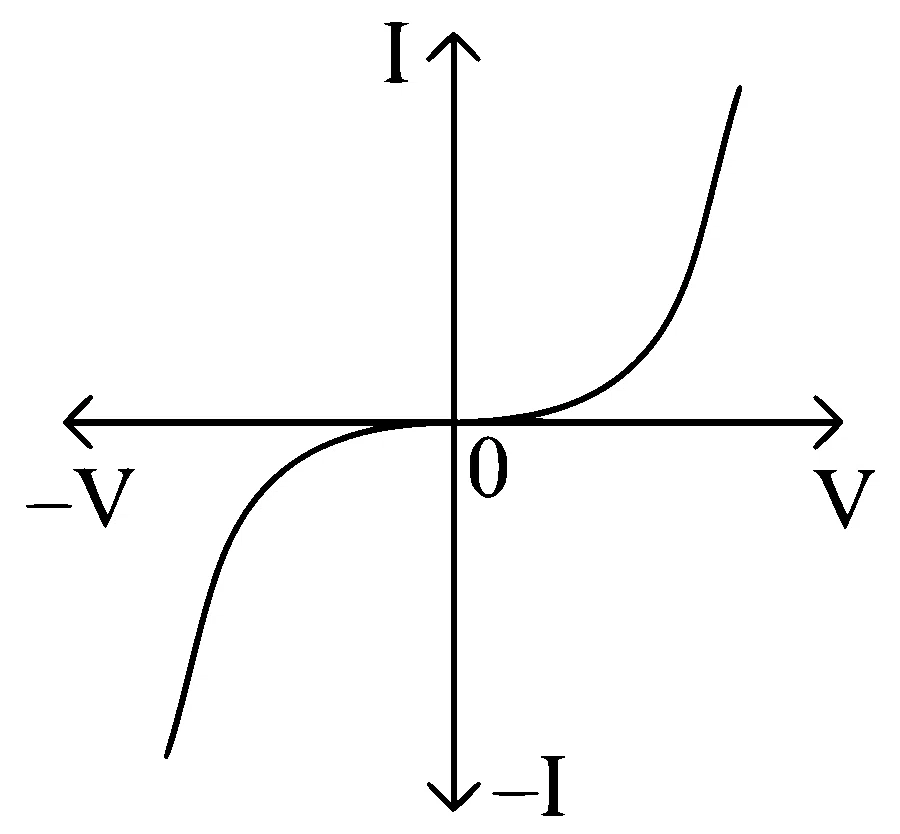

The graph showing both forward and reverse diode characteristics is not specific to LED, the solar-cell characteristic is different, and the reverse-bias first-quadrant type may correspond to devices like photodiode or Zener diode.
Conclusion
Hence, the correct LED
