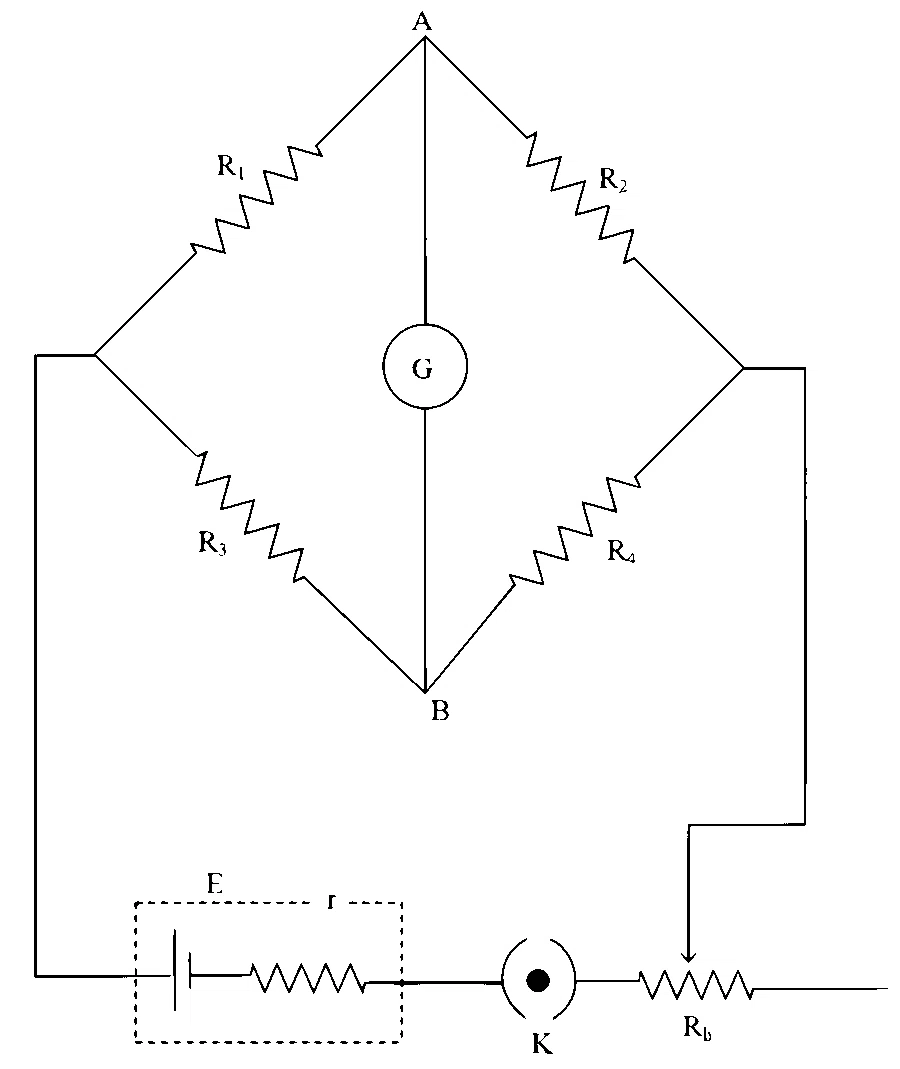

In the network shown cell E has internal resistance

Solution
Correct option: B
The galvanometer will still show zero deflection.
Observe the initial condition
The galvanometer initially shows zero deflection, so the bridge is balanced.
Use balanced bridge property
For a balanced Wheatstone bridge, the potentials at the galvanometer terminals are equal:
Check effect of new cell
Replacing the cell by one with emf
Conclusion
The balance condition remains
