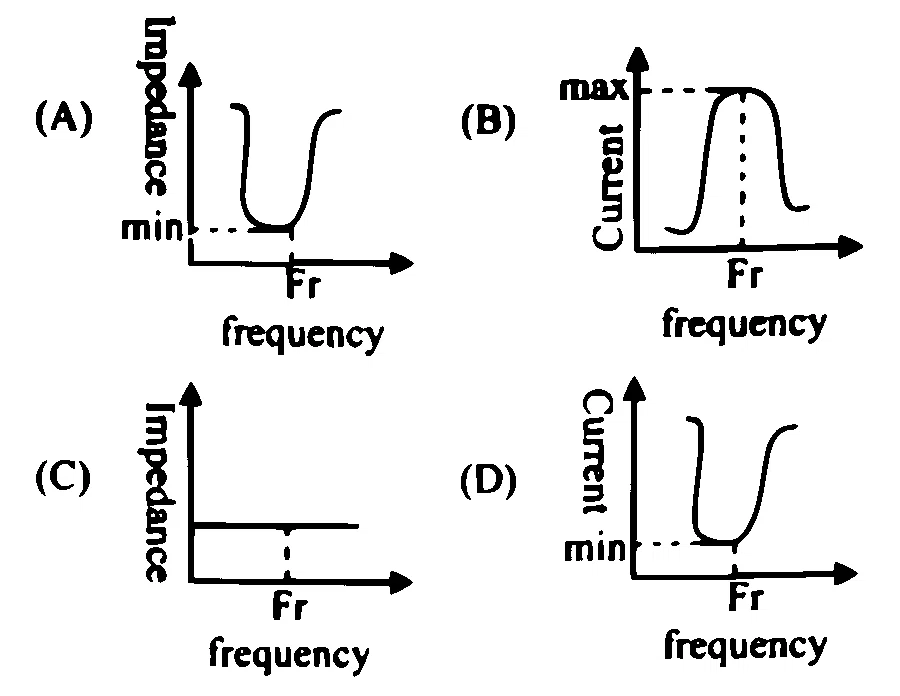

Out of the following graphs, the correct graphical relation for LC parallel resonant circuit at resonance is

Solution
Correct option: A
Correct answer: A
Use Resonance Condition
For an LC parallel resonant circuit, resonance occurs at the frequency
Check Impedance
At resonance, the impedance of the parallel LC circuit becomes maximum.
Check Current
Since current is inversely related to impedance, the circuit current is minimum at resonance.
Match the Graph
The graph showing maximum impedance and minimum current at
