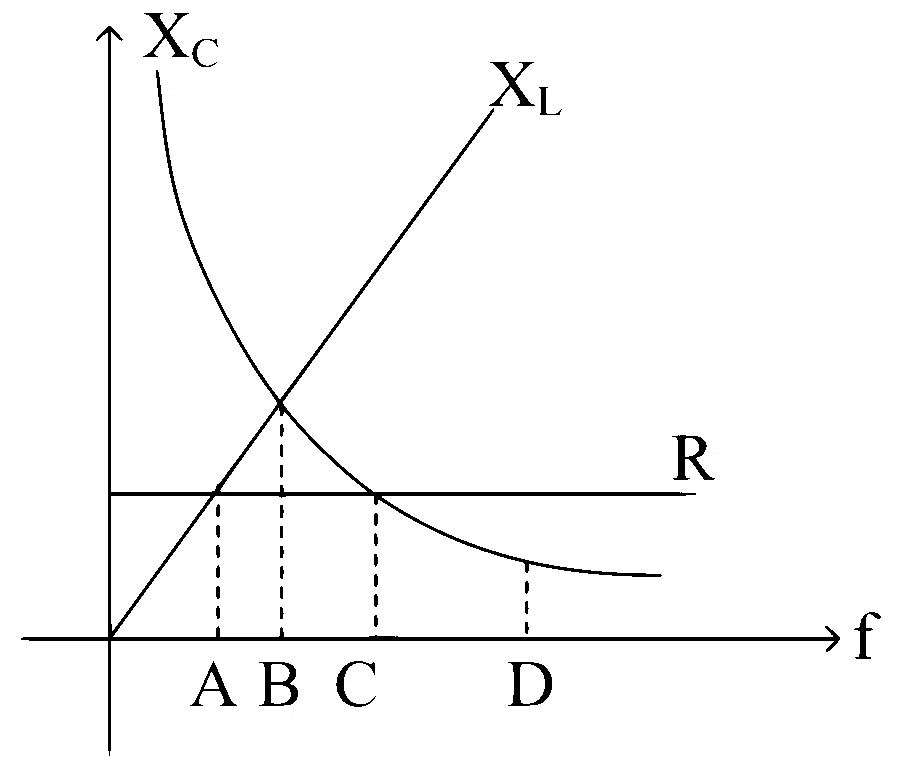

The figure shows variation of
Solution
Correct option: C
Point A
Recall the capacitive condition
A series LCR circuit behaves capacitively when the capacitive reactance is larger than the inductive reactance:
Compare at the marked points
From the graph, at point A the value of
Conclude the frequency point
Therefore, the circuit is capacitive at point A.
Choose the option
Point A corresponds to option C.
