Alternating Current PYQKCET 2021
MCQ+1 / -02021

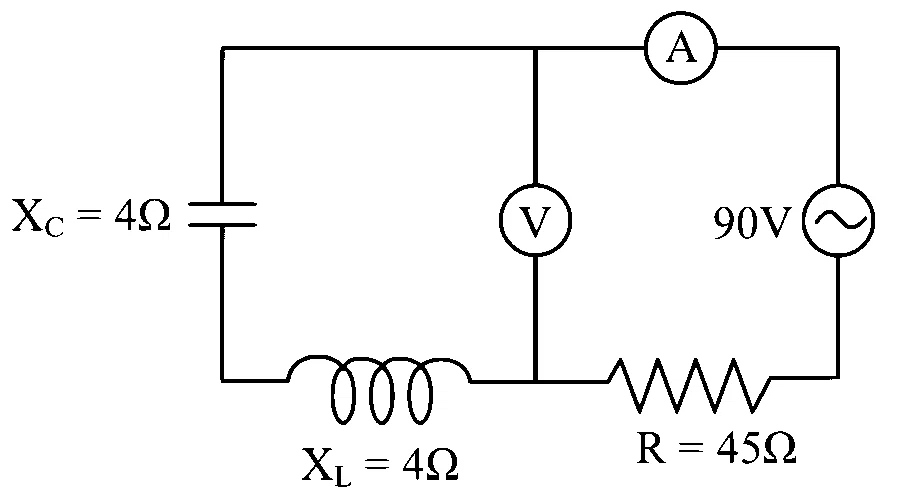

What will be the reading in the voltmeter and ammeter of the circuit shown?

Solution
Correct option: B
Answer: 0, 2A
Compare Reactances
Here,
So the voltages across the inductor and capacitor are equal in magnitude but opposite in phase.
Voltmeter Reading
The voltmeter is connected across the series combination of
So the voltmeter reads
Find Impedance
The impedance of the circuit is
Ammeter Reading
The current is
Therefore, the readings are
