Current Electricity PYQJEE Main 2026 (Online) 21st January Evening Shift

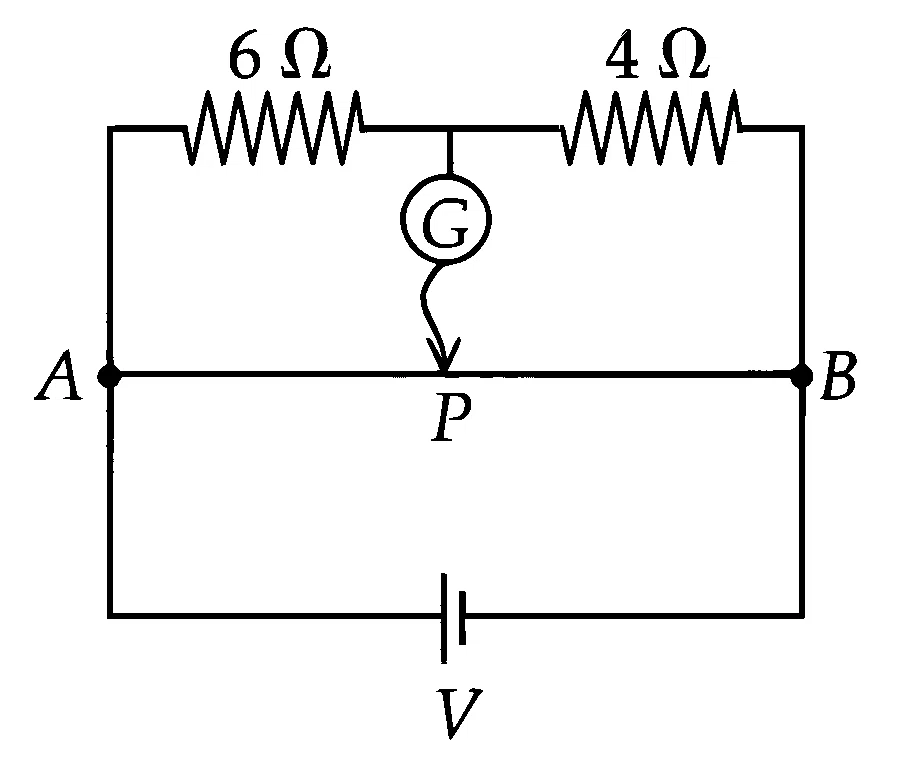

The total length of potentiometer wire AB is 50 cm in the arrangement as shown in the figure. If P is the point where the galvanometer shows zero reading then the length AP is ________ cm.

Solution
Correct option: B
30 cm
Apply balance condition
At zero galvanometer deflection, no current flows through the galvanometer branch, so the bridge is balanced.
Relate wire resistance to length
For a uniform potentiometer wire, resistance is proportional to length. If
Substitute the given resistances
Given
Solve for AP
Cross-multiplying,
Therefore,
