Structure Of Atom PYQJEE Main 2026 (Online) 28th January Morning Shift

Figure 1. electron probability density for 2 s orbital

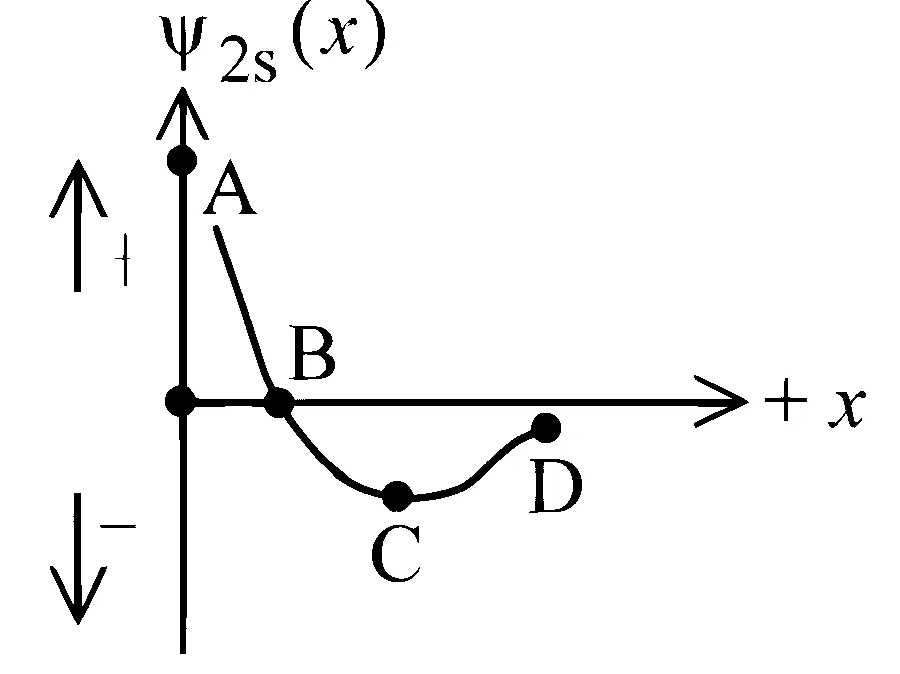

Figure 2. wave function for 2s orbital
Which of the following point in Figure 2 most accurately represents the nodal surface as shown in Figure 1?
Solution
Correct option: B
Answer: B
Locate the node
A nodal surface is the region where the electron probability density becomes zero.
Use 2s orbital nature
For an
Connect to wave function
At a radial node, the radial wave function is zero:
Read Figure 2
So the correct point is where the 2s wave function crosses the horizontal axis and changes sign.
Conclusion
In Figure 2, this point corresponds to option B.
