Current Electricity PYQJEE Main 2023 (Online) 24th January Morning Shift

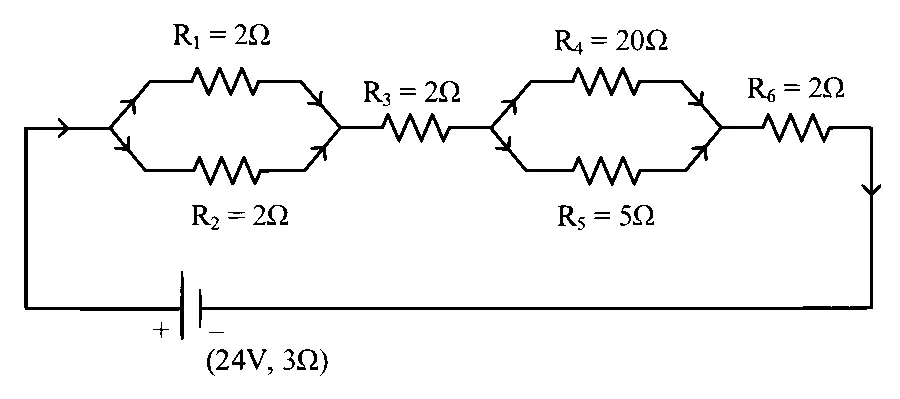

As shown in the figure, a network of resistors is connected to a battery of 24V with an internal resistance of 3

Solution
Correct option: C
Find total resistance
Add the effective series parts of the circuit, including internal resistance:
Find battery current
The current supplied by the battery is
Use current division
For the parallel branch containing
Get remaining branch current
The rest of the branch current flows through
Hence, the correct option is C.
