Laws Of Motion PYQJEE Main 2022 (Online) 30th June Morning Shift

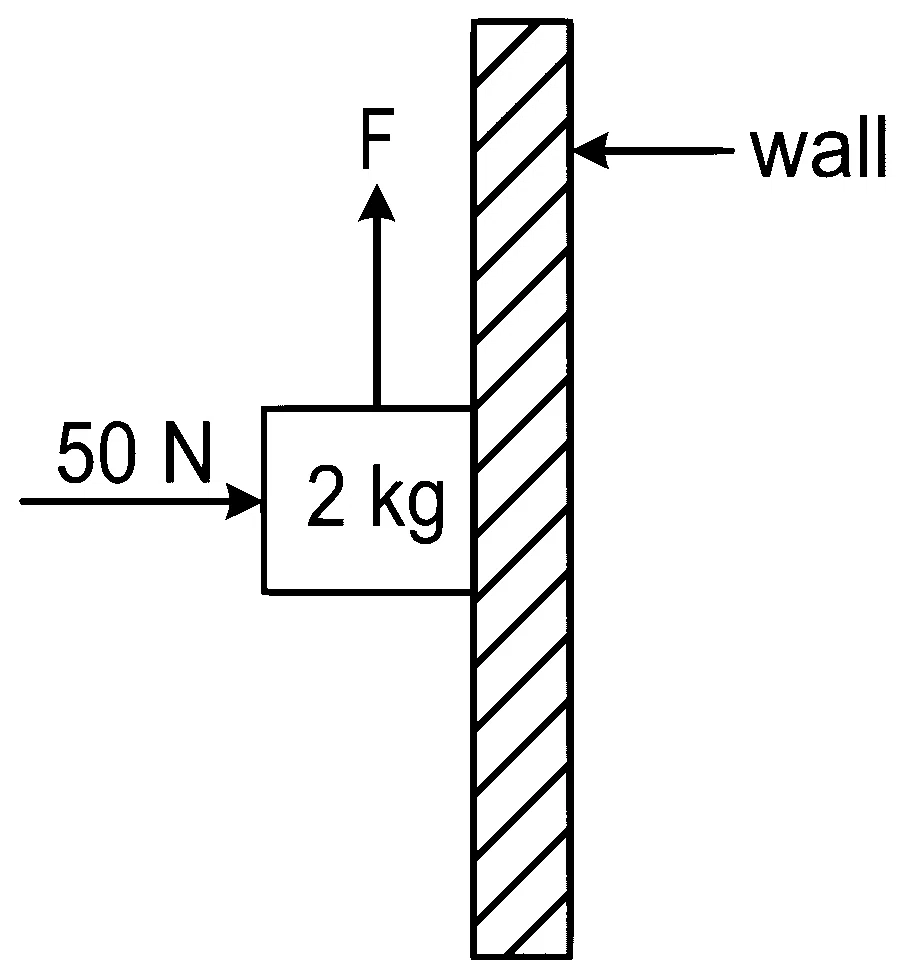

A 2 kg block is pushed against a vertical wall by applying a horizontal force of 50 N. The coefficient of static friction between the block and the wall is 0.5. A force F is also applied on the block vertically upward (as shown in figure). The maximum value of F applied, so that the block does not move upward, will be :
(Given : g = 10 ms

Solution
Correct option: D
Maximum upward force is
Step 1
For the largest upward force without upward motion, the block is just about to move up, so static friction acts downward at its limiting value.
Step 2
The horizontal push gives the normal reaction:
Step 3
Maximum static friction is:
Step 4
At limiting equilibrium in the vertical direction:
