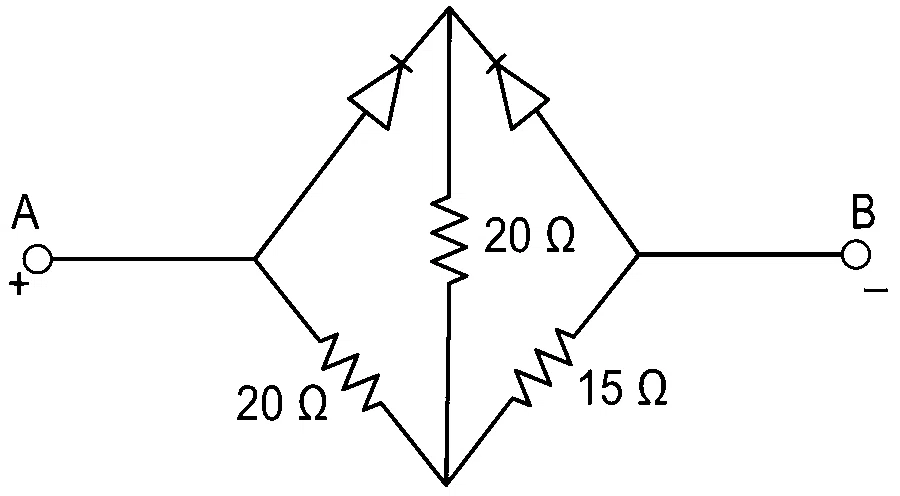

Two ideal diodes are connected in the network as shown in figure. The equivalent resistance between A and B is __________

Solution
Answer: 25
Equivalent resistance = 25
Identify Conducting Paths
For ideal diodes, replace the forward-biased diodes by short circuits and ignore the reverse-biased paths.
Simplify the Network
After applying the diode conditions, the circuit reduces to two
Find the Parallel Part
The equivalent of the two
Add the Series Resistance
Total resistance between A and B is
