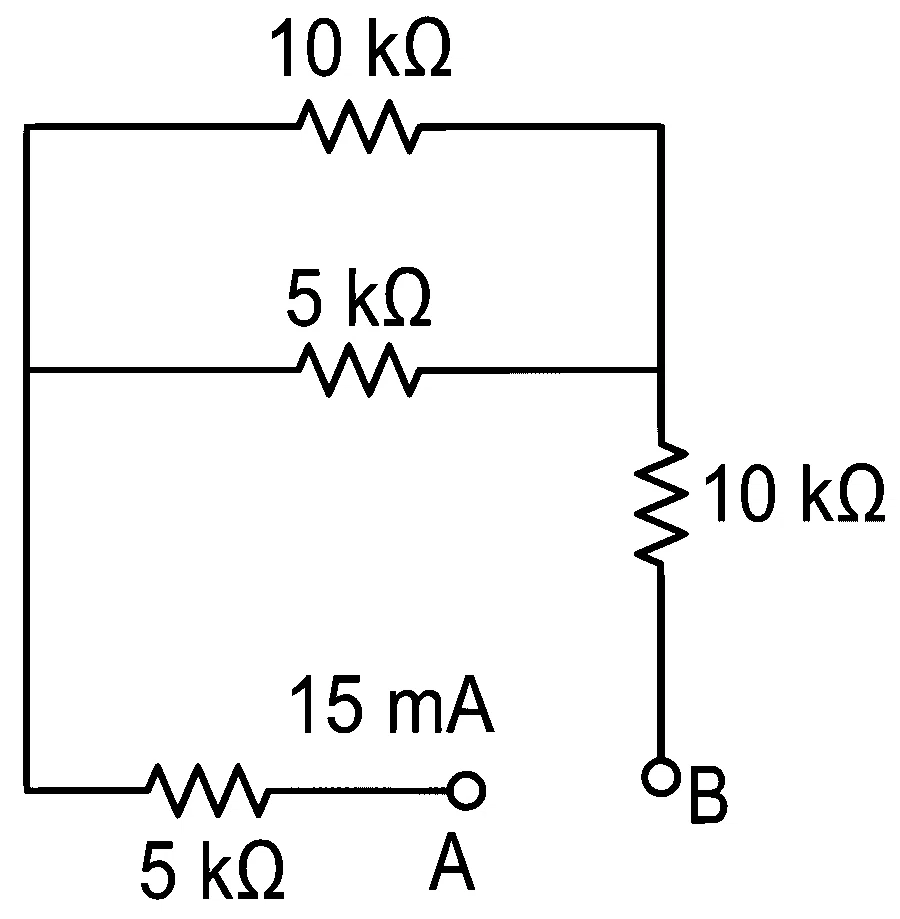

A current of 15 mA flows in the circuit as shown in figure. The value of potential difference between the points A and B will be:

Solution
Correct option: D
Step 1
First reduce the resistance network between A and B as indicated by the circuit.
Step 2
The effective resistance is
Step 3
Simplifying,
Step 4
Using
Step 5
Thus,
