Current Electricity PYQJEE Main 2022 (Online) 25th June Morning Shift
INTEGER+4 / -12022

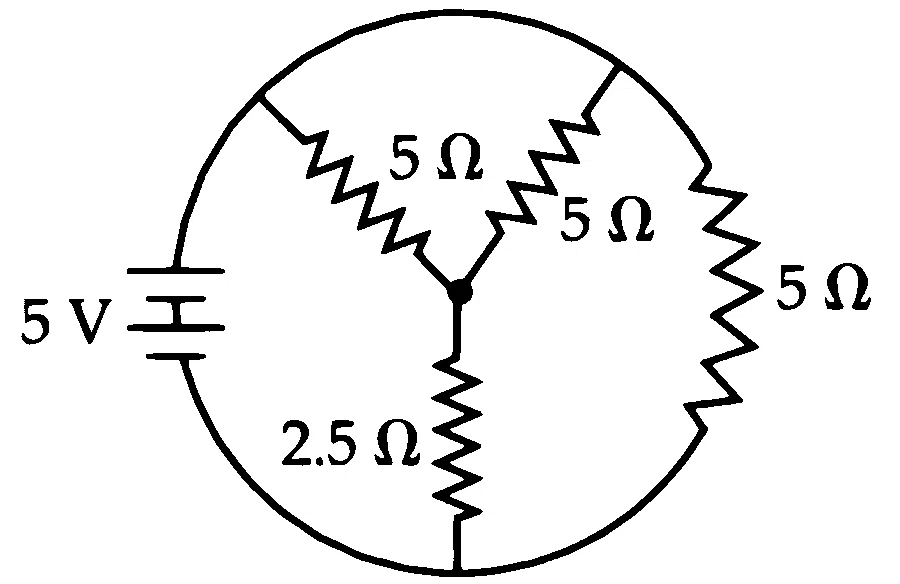

The total current supplied to the circuit as shown in figure by the 5 V battery is ____________ A.

Solution
Answer: 2
Step 1
Reduce the given resistor network to its equivalent circuit, as indicated in the source diagram.
Step 2
The equivalent resistance seen by the
Step 3
Apply Ohm's law:
Step 4
Hence, the total current supplied by the battery is
