Atoms And Nuclei PYQJEE Main 2022 (Online) 25th June Evening Shift
Which of the following figure represents the variation of
Solution
Correct option: B

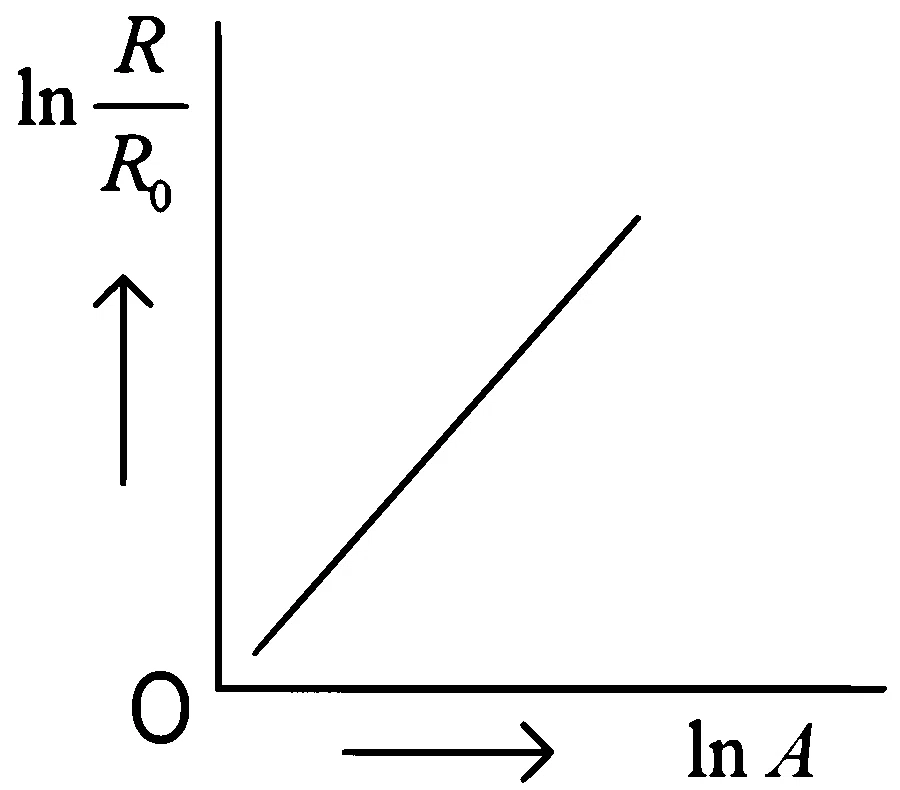

The graph is a straight line through the origin with slope
Step 1
Use the standard nuclear radius relation:
\$\$R=R_0A^{1/3}\$\$
Step 2
Divide both sides by
\$\${R\over R_0}=A^{1/3}\$\$
Step 3
Take natural logarithm on both sides:
\$\$\ln\left({R\over R_0}\right)=\ln\left(A^{1/3}\right)\$\$
Step 4
Simplify the logarithm:
\$\$\ln\left({R\over R_0}\right)={1\over 3}\ln A\$\$
Step 5
This is of the form
